Stabilizer Bar Link: Notes

WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

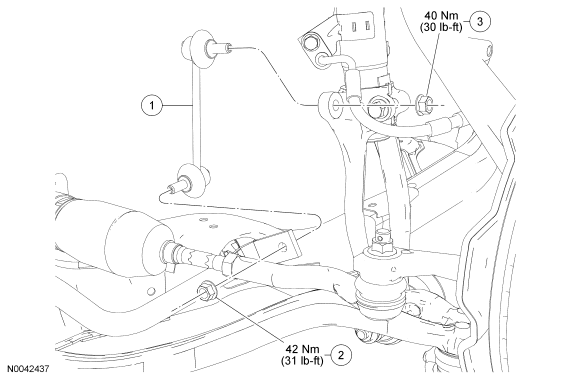

Fig 1: Exploded View Of Stabilizer Bar Link With Torque Specifications
GF0029488Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3053 LH/ 3052 RH Stabilizer bar link
2 3C494 Stabilizer bar link lower nut
3 3C494 Stabilizer bar link upper nut
