Fog Lamp: Notes

WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

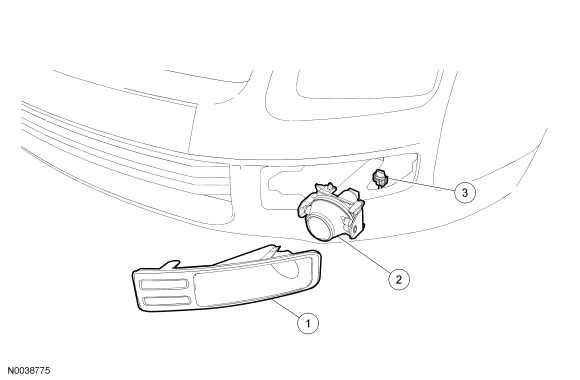

Fig 1: Exploded View Of Fog Lamp

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	17K946	Fog lamp bezel
2	15K200	Fog lamp
3	-	Fog lamp electrical connector (part of 14290)
