Steering Column Shroud: Notes

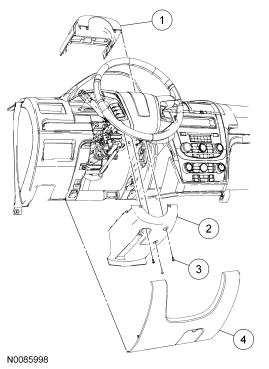

Fig 1: Exploded View Of Steering Column Shroud
GF0041536Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3530 Upper steering column shroud
2 3K512 Lower steering column shroud
3 W707658 Lower steering column shroud screw
4 5404459 Steering column opening cover
