Satellite Digital Audio Receiver System Module Connector - C4300

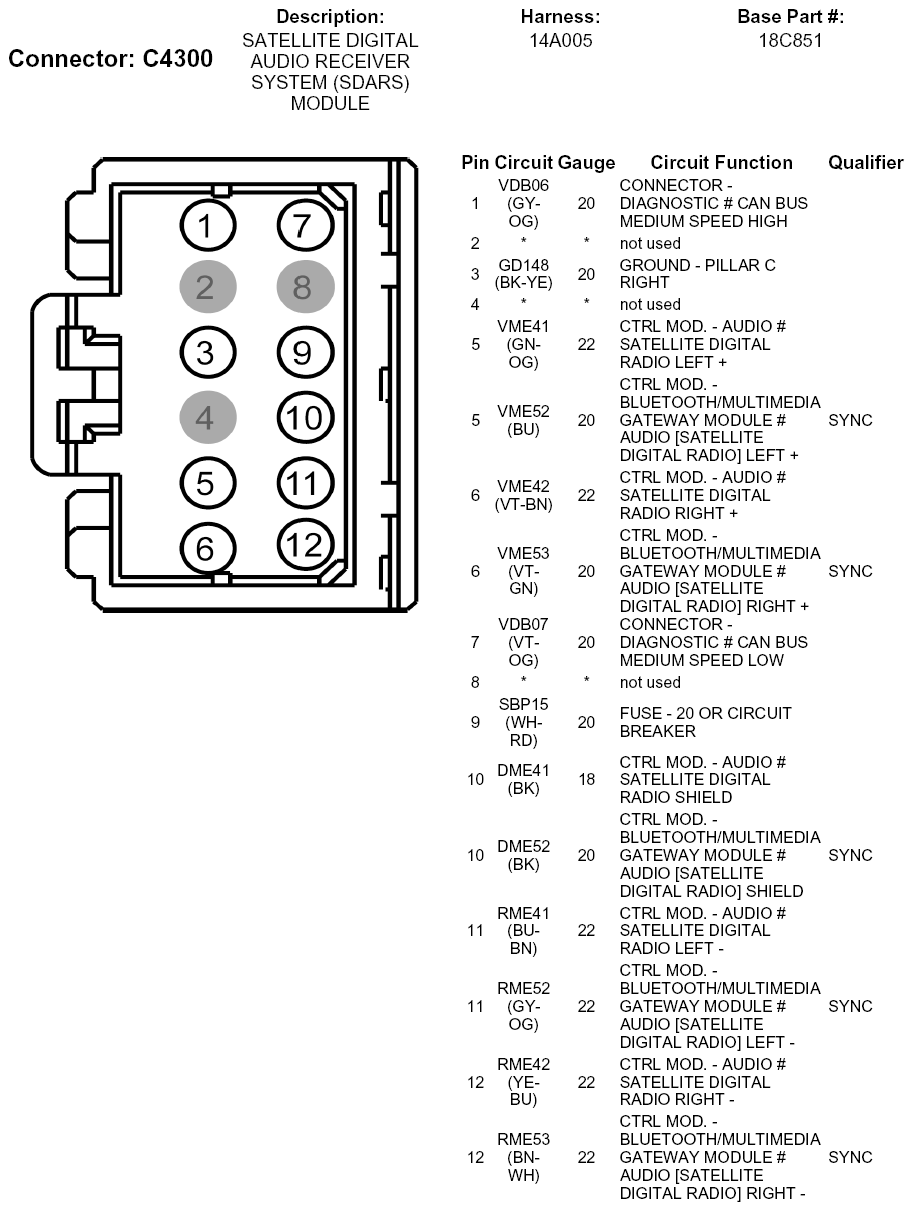

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C4300)

G05770139

Courtesy of FORD MOTOR CO.
