Passenger Side Window Control Switch Connector End View - C624

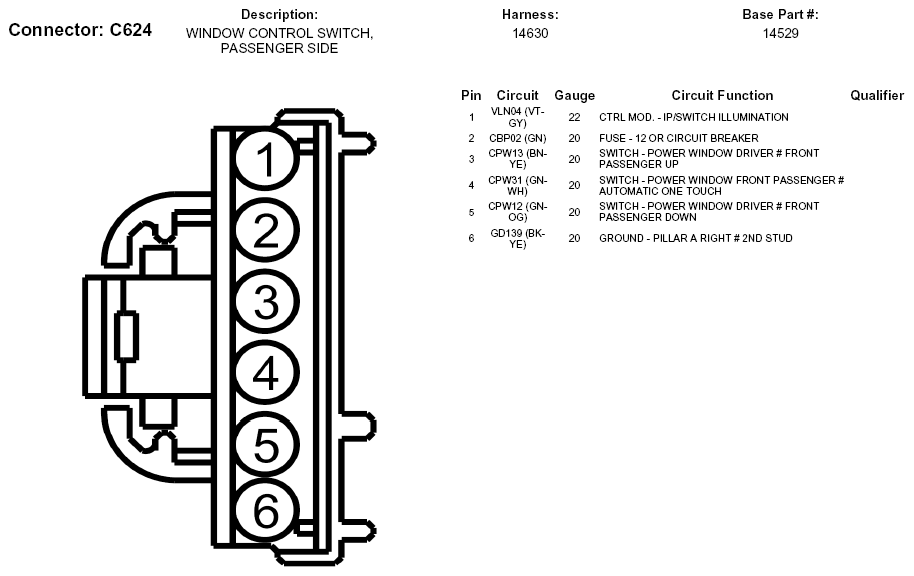

Fig 1: Passenger Side Window Control Switch Connector End View (C624)

G05769951

Courtesy of FORD MOTOR CO.
