Passenger Side Window Control Switch Connector End View - C604

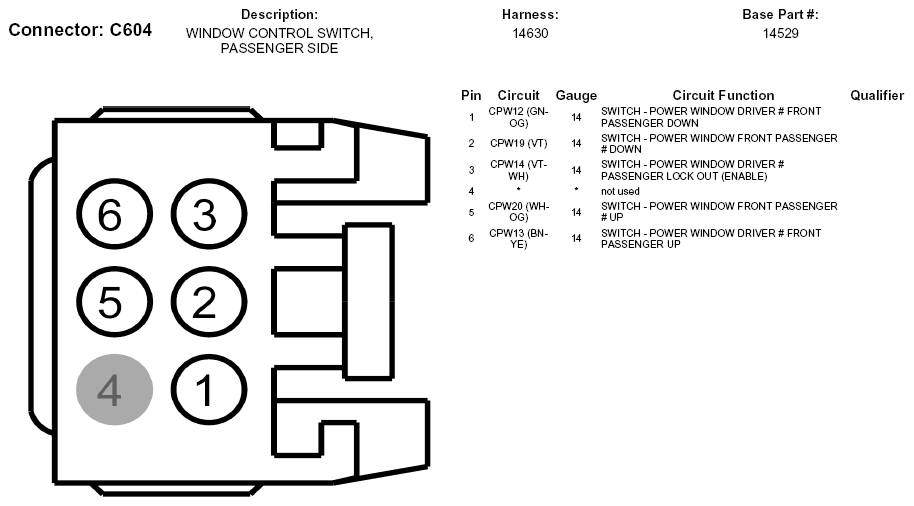

Fig 1: Passenger Side Window Control Switch Connector End View (C604)

G05769942

Courtesy of FORD MOTOR CO.
