Audio Input Jack Connector End View - C3337

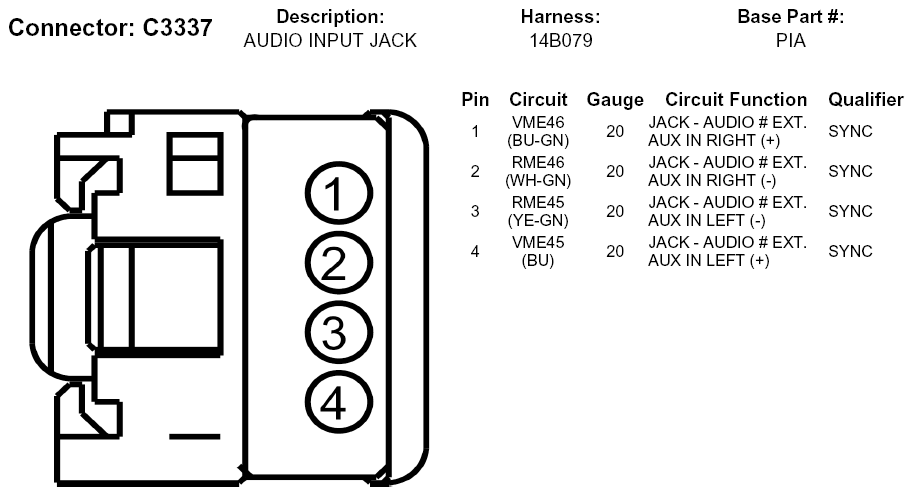

Fig 1: Audio Input Jack Connector End View (C3337)

G05770124

Courtesy of FORD MOTOR CO.
