Audio Input Jack Connector End View - C2401

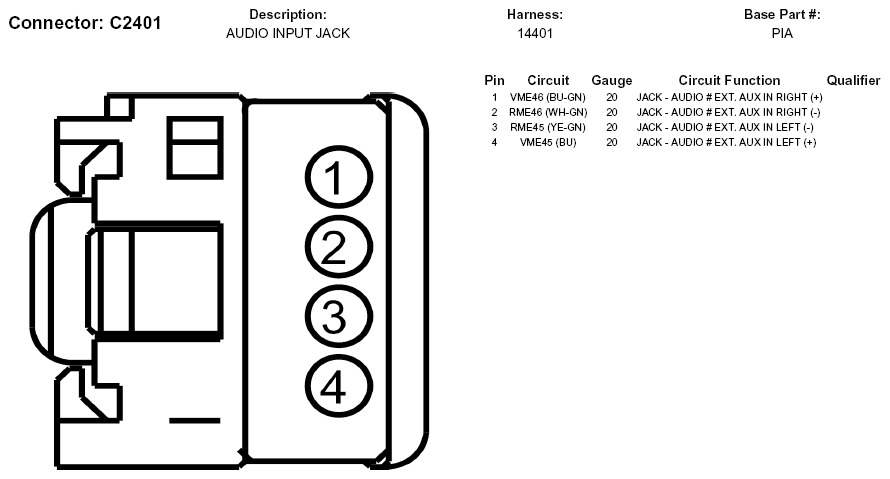

Fig 1: Audio Input Jack Connector End View (C2401)

G05770055

Courtesy of FORD MOTOR CO.
