Occupant Classification Sensor 2 Connector - C3325

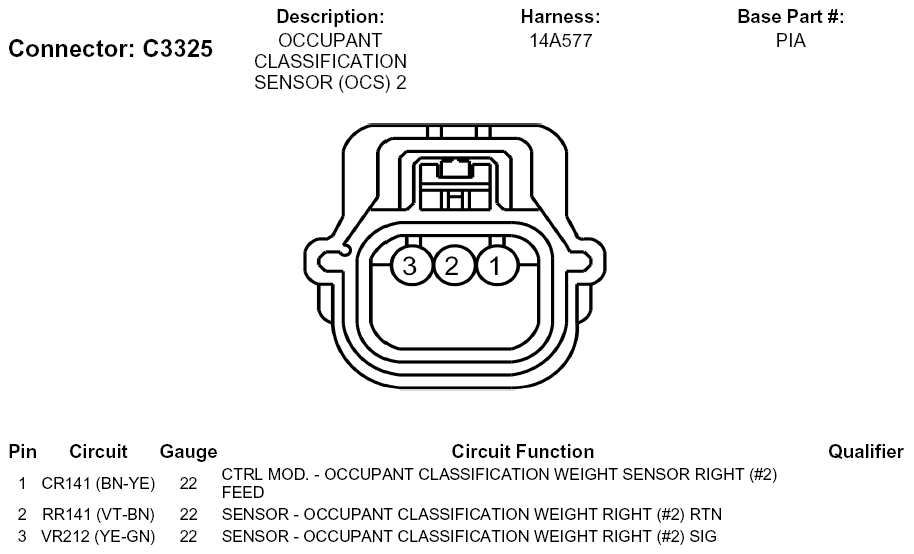

Fig 1: Occupant Classification Sensor 2 Connector End View (C3325)

G05770121

Courtesy of FORD MOTOR CO.
