Master Window Control Switch Connector End View - C535A

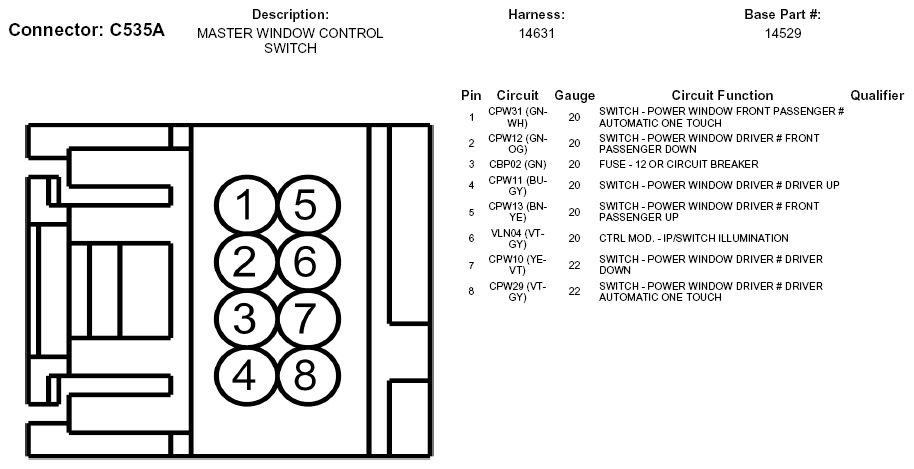

Fig 1: Master Window Control Switch Connector End View (C535A)

G05769933

Courtesy of FORD MOTOR CO.
