Video Camera: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

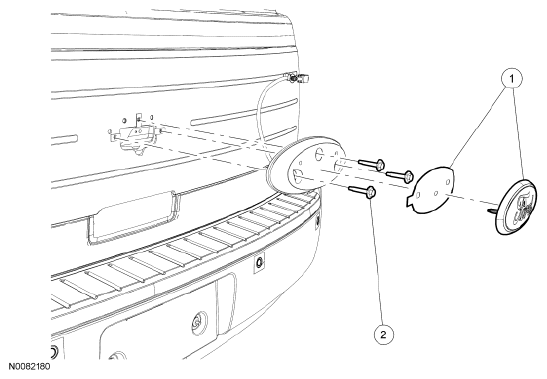

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7843156 | Ford oval emblem (adhesive sticker part of the Ford oval) |
| 2 | W505426 | Ford oval emblem bezel bolts (3 required) |

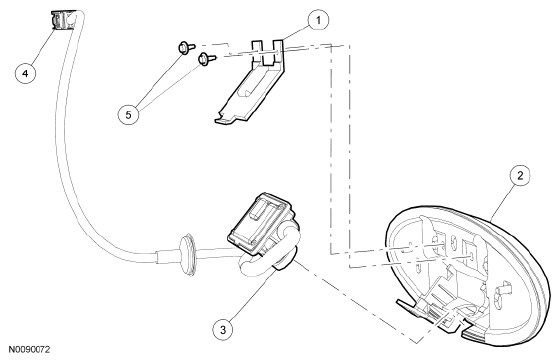

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Video camera cover |
| 2 | - | Ford oval emblem bezel |
| 3 | 19H438 | Video camera |
| 4 | - | Video camera electrical connector |
| 5 | - | Video camera cover screws (2 required) |
