EMTC HVAC Module Connector End View (C2357B)

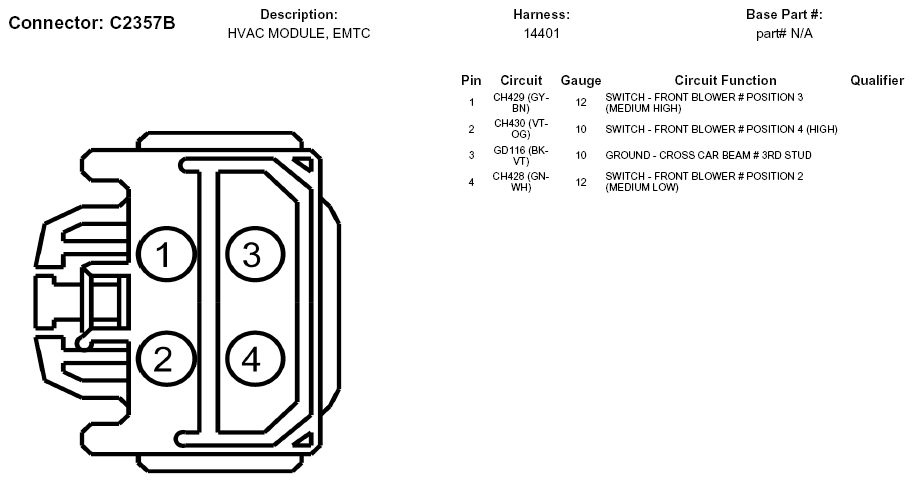

Fig 1: EMTC HVAC Module Connector End View (C2357B)

G05747119

Courtesy of FORD MOTOR CO.
