Driver Seat Module Connector End View (C3299A)

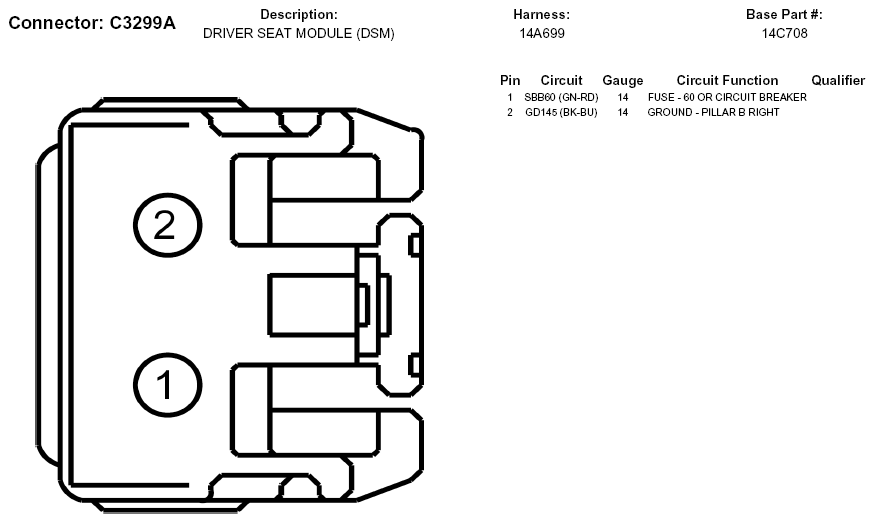

Fig 1: Driver Seat Module Connector End View (C3299A)

G05747156

Courtesy of FORD MOTOR CO.
