Restraints Control Module Connector End View (C310B)

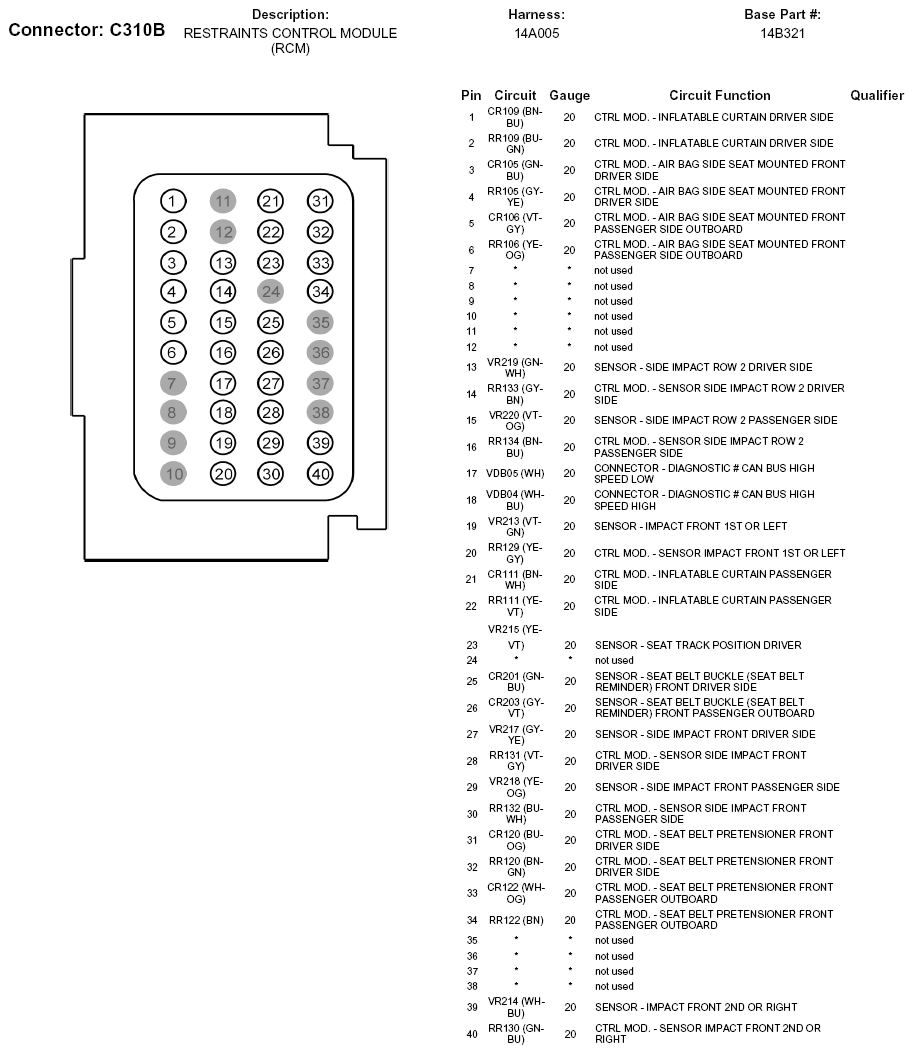

Fig 1: Restraints Control Module Connector End View (C310B)

G05746969

Courtesy of FORD MOTOR CO.
