Audio Digital Signal Processing Module Connector End View (C4348A)

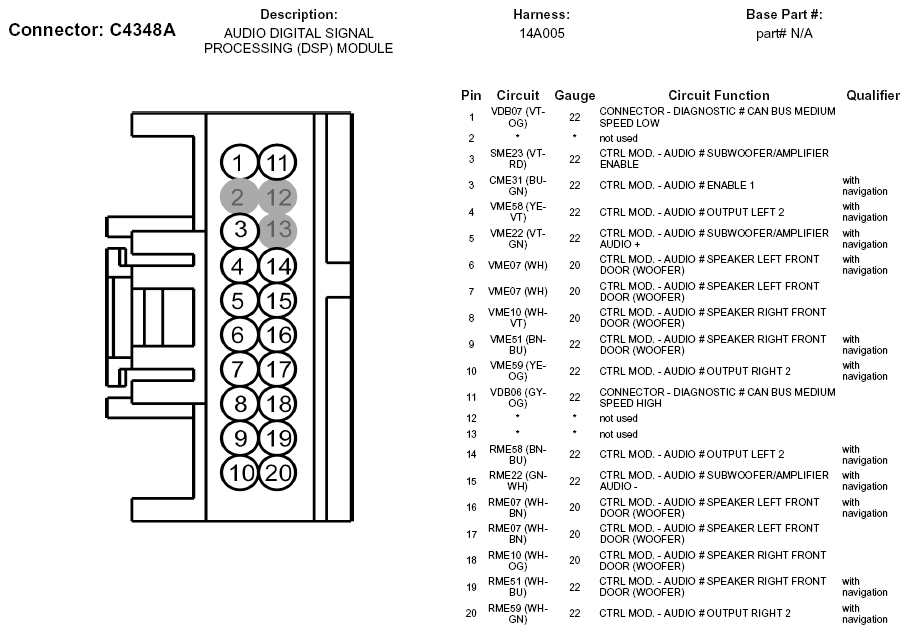

Fig 1: Audio Digital Signal Processing Module Connector End View (C4348A)

G05747209

Courtesy of FORD MOTOR CO.
