Bumper - Front

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper cover. For additional information, refer to BUMPER COVER - FRONT .
Remove the 6 front bumper bolts (3 each side).
- To install, tighten to 67 Nm (49 lb-ft).

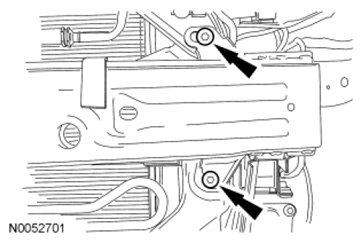

  Fig 1: Locating Front Bumper Bolts
  Courtesy of FORD MOTOR CO.
Remove the 4 upper and lower bumper-to-radiator support bolts (2 each side).
- To install, tighten to 9 Nm (80 lb-in).

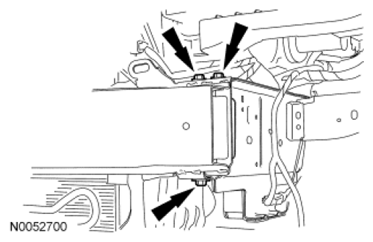

  Fig 2: Locating Upper And Lower Bumper-To-Radiator Support Bolts
  Courtesy of FORD MOTOR CO.
Remove the front bumper.
To install, reverse the removal procedure.
