Cruise Control Module Connector - C3173

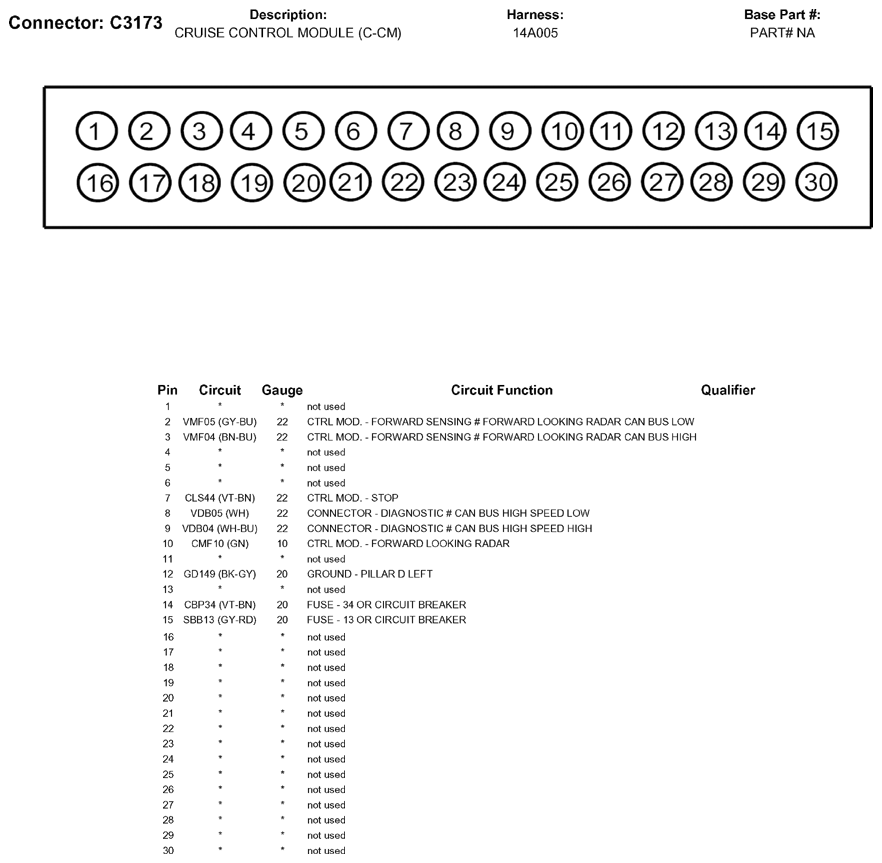

Fig 1: Cruise Control Module Connector End View (C3173)

G05786081

Courtesy of FORD MOTOR CO.
