Parking Aid Module Connector End View - C4226B

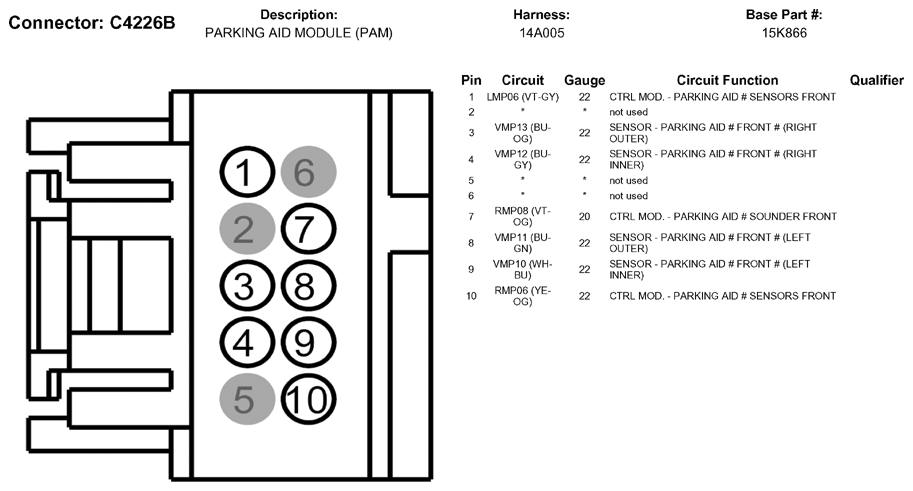

Fig 1: Parking Aid Module Connector End View (C4226B)

G05786126

Courtesy of FORD MOTOR CO.
