Parking Aid Module Connector End View - C4014

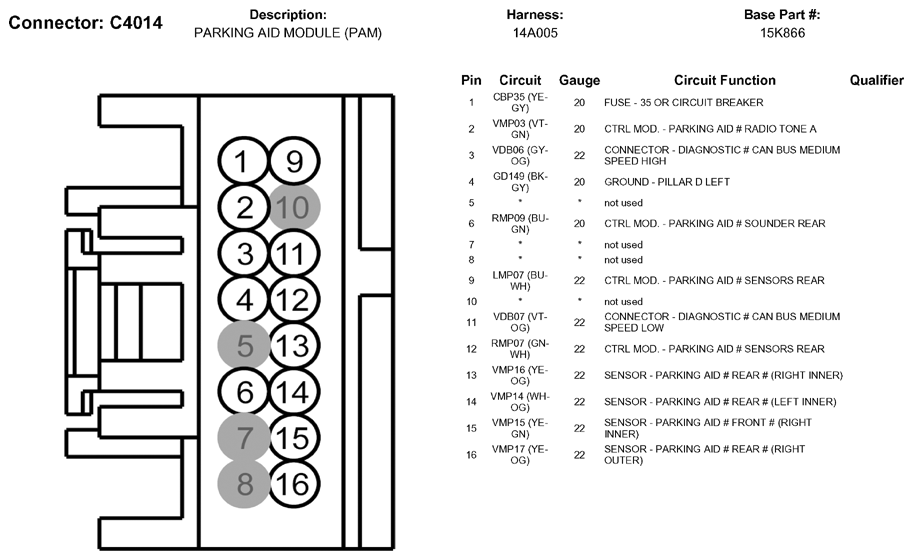

Fig 1: Parking Aid Module Connector End View (C4014)

G05786119

Courtesy of FORD MOTOR CO.
