Highbeam Control Module Connector - C9115

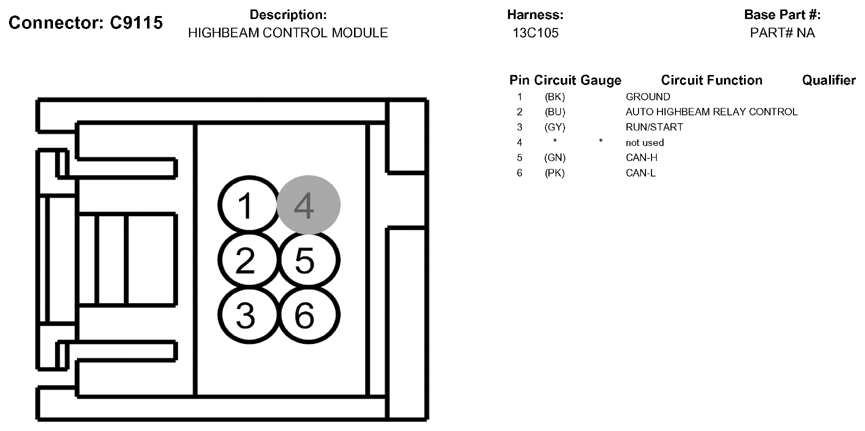

Fig 1: Highbeam Control Module Connector End View (C9115)

G05786135

Courtesy of FORD MOTOR CO.
