Headlamp Control Module Connector - C1600

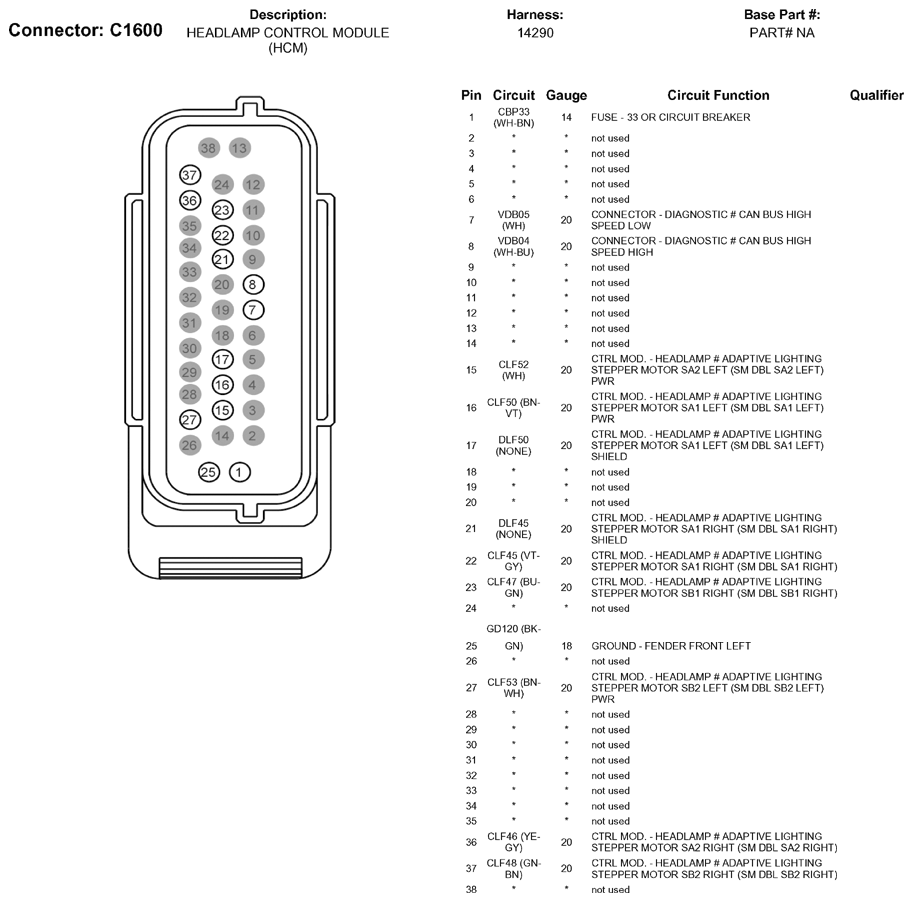

Fig 1: Headlamp Control Module Connector End View (C1600)

G05786012

Courtesy of FORD MOTOR CO.
