Driver Side Front Seat Control Switch Connector End View - C360A

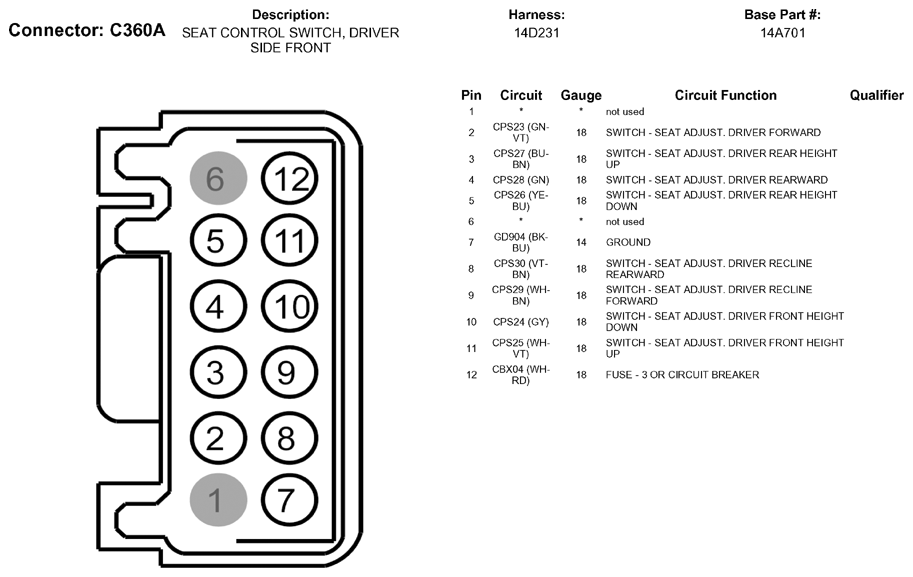

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360A)

G05785909

Courtesy of FORD MOTOR CO.
