Front Control Interface Module Connector End View - C2402

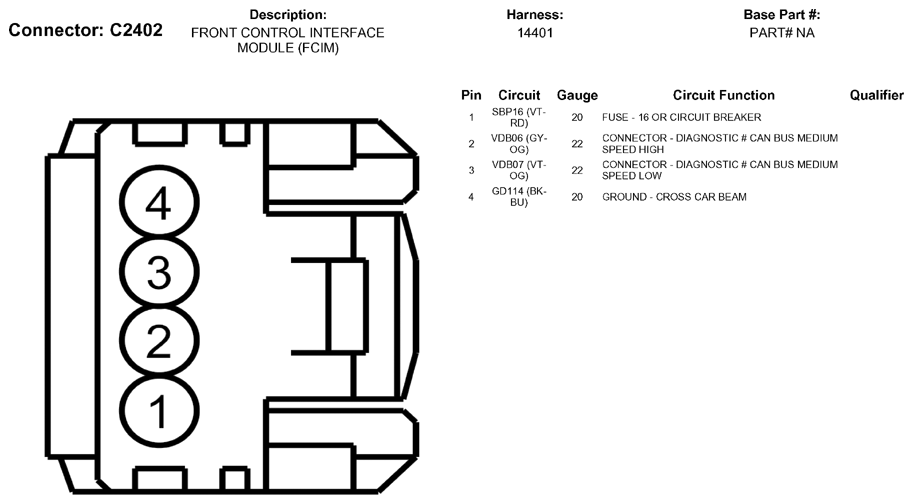

Fig 1: Front Control Interface Module Connector End View (C2402)

G05786050

Courtesy of FORD MOTOR CO.
