Accessory Protocol Interface Module (APIM): Notes

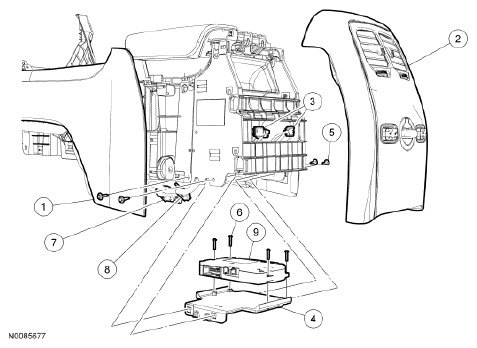

Fig 1: Exploded View Of Accessory Protocol Interface Module (APIM)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	5404609	Floor console upper trim panel
2	54045A36	Floor console rear panel
3	-	Floor console rear panel electrical connectors (part of 14B079)
4	14A301	Accessory Protocol Interface Module (APIM) bracket
5	W707628-S	APIM  bracket screws (4 required)
6	W505946-S	APIM  screws (4 required)
7	-	APIM  electrical connector (part of 14B079)
8	14D202	Universal Serial Bus (USB)
9	14D212	APIM
