Home >> Lincoln >> 2009 >> MKS AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Front Display Interface Module Connector - C2123

Front Display Interface Module Connector - C2123

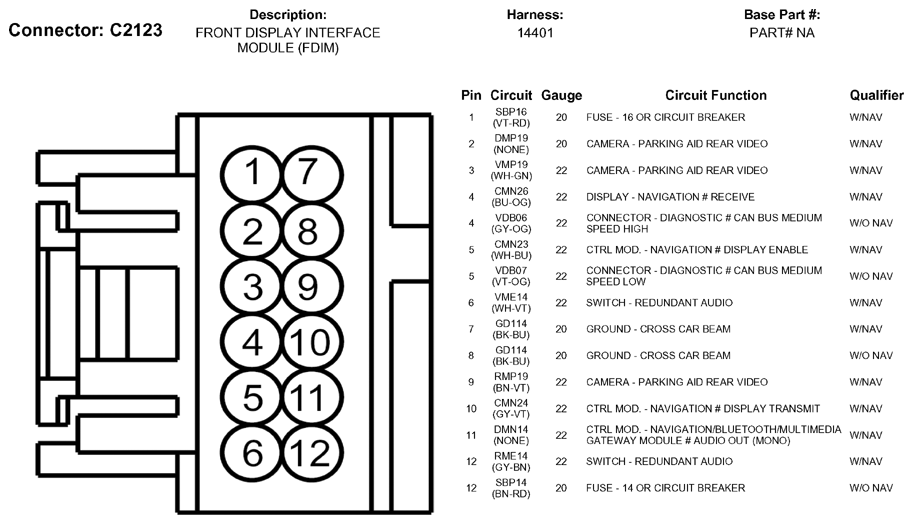

Fig 1: Front Display Interface Module Connector End View (C2123)

G05786020

Courtesy of FORD MOTOR CO.
