Home >> Lincoln >> 2009 >> MKS AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Audio Digital Signal Processing Module Connector >> Audio Digital Signal Processing Module Connector End View - C4326B

Audio Digital Signal Processing Module Connector End View - C4326B

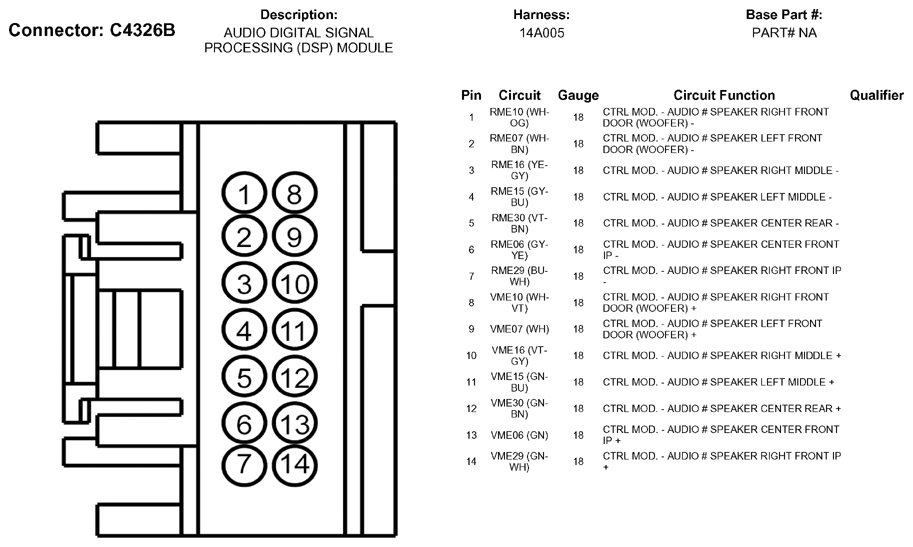

Fig 1: Audio Digital Signal Processing Module Connector End View (C4326B)

G05786128

Courtesy of FORD MOTOR CO.
