Audio Control Module (ACM): Notes

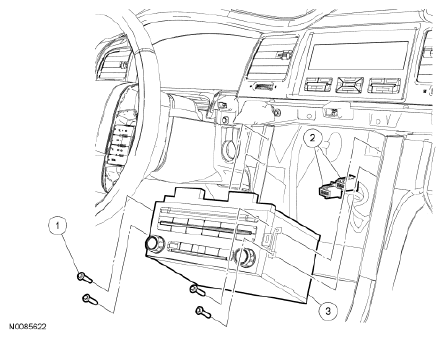

Fig 1: Exploded View Of Audio Control Module (ACM)
G06075583Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W707628-S Audio Control Module (ACM) screws (4 required)
2 - ACM  electrical connectors (part of 14401)
3 18806 ACM
