Cooling Fan: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Wrench, Fan Clutch Nut	303-214 (T83T-6312-B)
Courtesy of FORD MOTOR CO.	Holding Wrench, Fan Pulley	303-239 (T84T-6312-C)

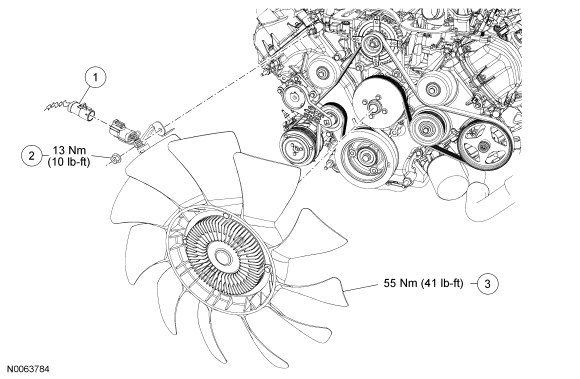

Fig 1: Exploded View Of Cooling Fan With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cooling fan electronic clutch electrical connector (part of 12B637)
2	W710417	Cooling fan electronic clutch wiring harness support bracket nut
3	8600	Cooling fan and clutch assembly
