Steering Gear: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Separator, Ball Joint Tool	204-592

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

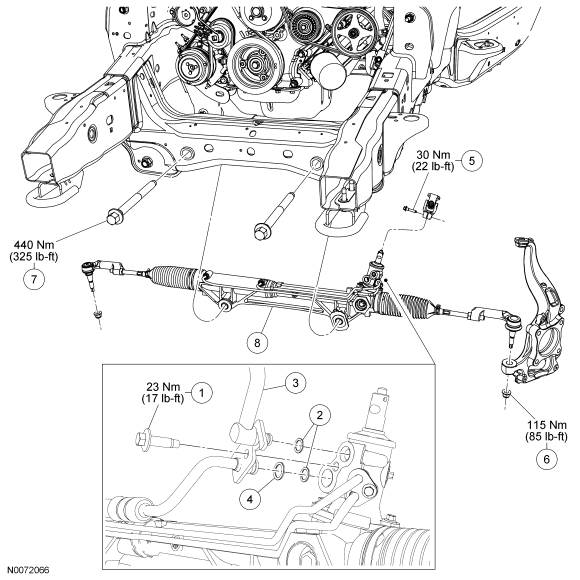

Fig 1: Exploded View Of Steering Gear With Torque Specifications

GF0046997

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707622	Power steering line clamp plate bolt
2	3F886-A 3F886-B	Power steering line O-ring seals (2 required)
3	3D746	Power steering return line
4	3B602	O-ring seal
5	N808684	Steering column shaft-to-steering gear bolt
6	W520215	Outer tie-rod end nut (2 required)
7	W711590	Steering gear-to-crossmember bolt (2 required)
8	3504	Steering gear
