Anti-Lock Brake System (ABS) Module: Notes

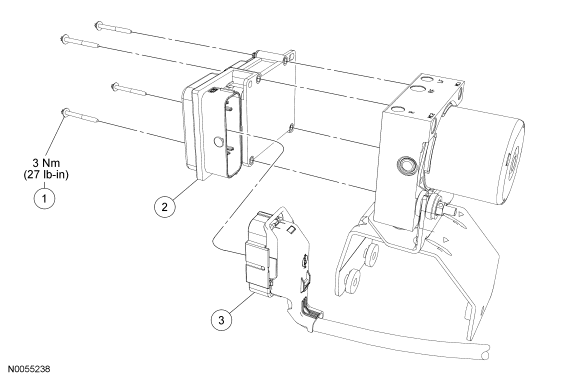

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C398	ABS module screw (4 required) (also part of 2C219)
2	2C219	ABS module
3	-	ABS module electrical connector (part of 12A581)
