Valve Cover - LH: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Handle	205-153 (T80T-4000-W)
Courtesy of FORD MOTOR CO.	Installer, Seal	303-1247/2
Courtesy of FORD MOTOR CO.	Remover, Seal	303-1247/1

Material

Item	Specification
Motorcraft High Performance Engine RTV Silicone TA-357	WSE-M4G323-A6
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-

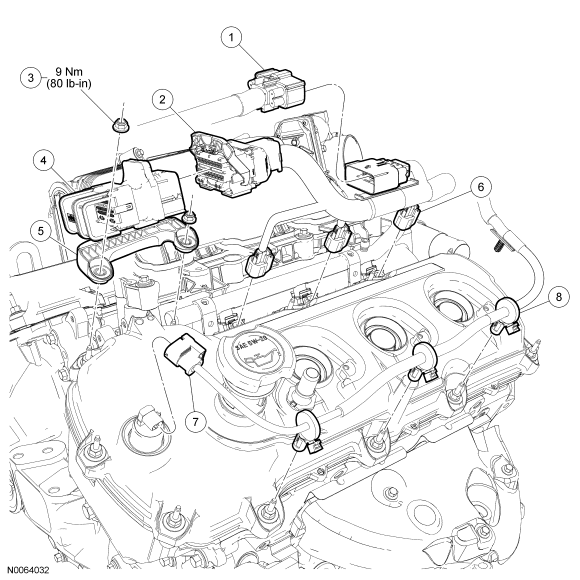

Fig 1: Exploded View Of LH Valve Cover With Torque Specification (1 Of 2)

GF0029087

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Engine control wiring harness electrical connector (part of 12C508)
2	14A464	Engine control wiring harness electrical connector (part of 12C508)
3	W520100	Wiring harness retaining bracket nut (2 required)
4	14A464	Engine control wiring harness electrical connector (part of 12C508)
5	-	Wiring harness retaining bracket (part of 12C508)
6	14A464	LH fuel injector electrical connector (3 required) (part of 12C508)
7	14A464	LH variable camshaft timing (VCT) electrical connector (part of 12C508)
8	W700497	Engine control wiring harness retainer (part of 12C508)

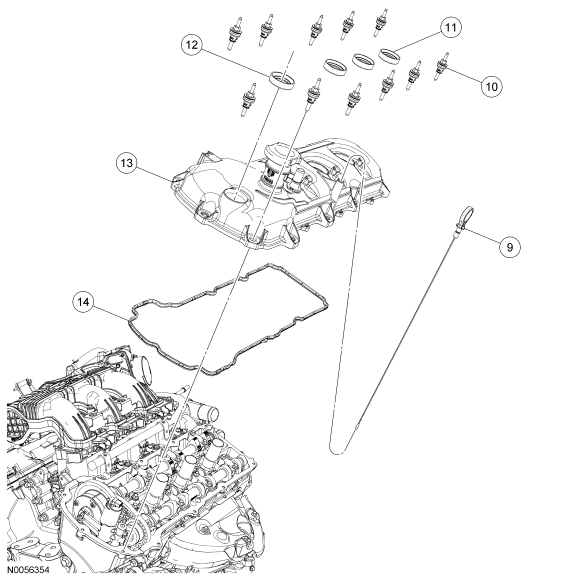

Fig 2: Exploded View Of LH Valve Cover (2 Of 2)

GF0029088

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
9	6750	Oil level indicator
10	6C519	Valve cover stud bolt (11 required)
11	6C535	Spark plug tube seal (3 required)
12	6C535	Variable camshaft timing (VCT) seal
13	6A505	LH valve cover
14	6A559	LH valve cover gasket
