Left Seat Track Position Sensor Connector

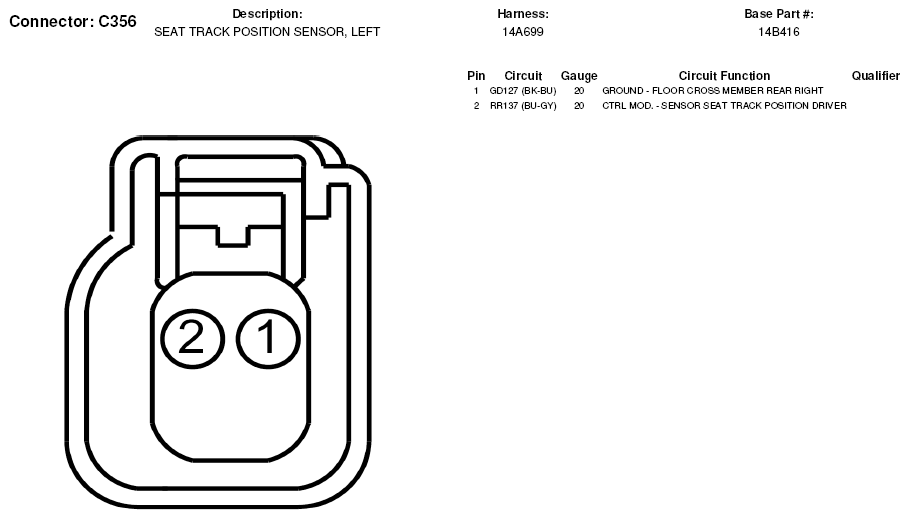

Fig 1: Left Seat Track Position Sensor Connector End View (C356)

G05602482
