Left Front Power Window Motor Connector
Left Front Power Window Motor Connector

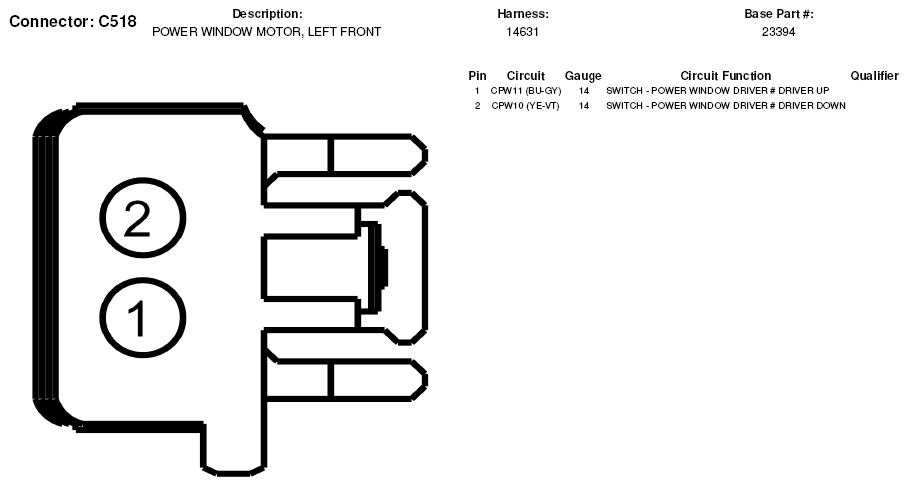

Fig 1: Left Front Power Window Motor Connector End View (C518)

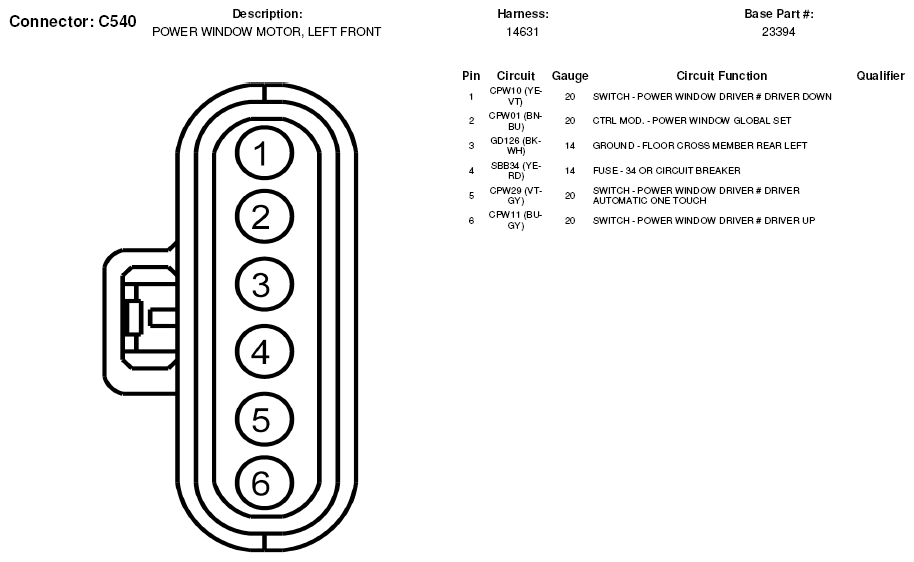

Fig 2: Left Front Power Window Motor Connector End View (C540)
