Front Blower Motor Speed Controller Connector

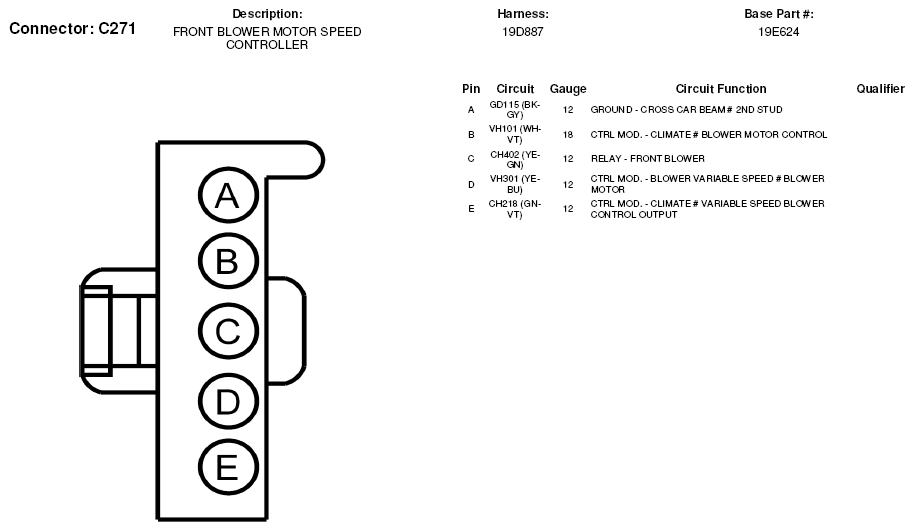

Fig 1: Front Blower Motor Speed Controller Connector End View (C271)

G05602452
