Antenna Module: Notes

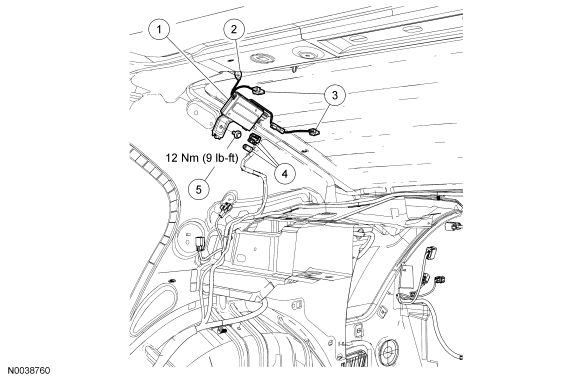

Fig 1: Exploded View Of Antenna Module With Torque Specification
GF0030440Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19C029 Antenna module
2 - Antenna module-to-antenna connector (part of 19C029)
3 - Heated rear window connectors (part of 19C029)
4 - Antenna module electrical connectors (part of 14A005)
5 - Antenna module bolt
