FNR5 Transmission Control Module Connector
FNR5 Transmission Control Module Connector

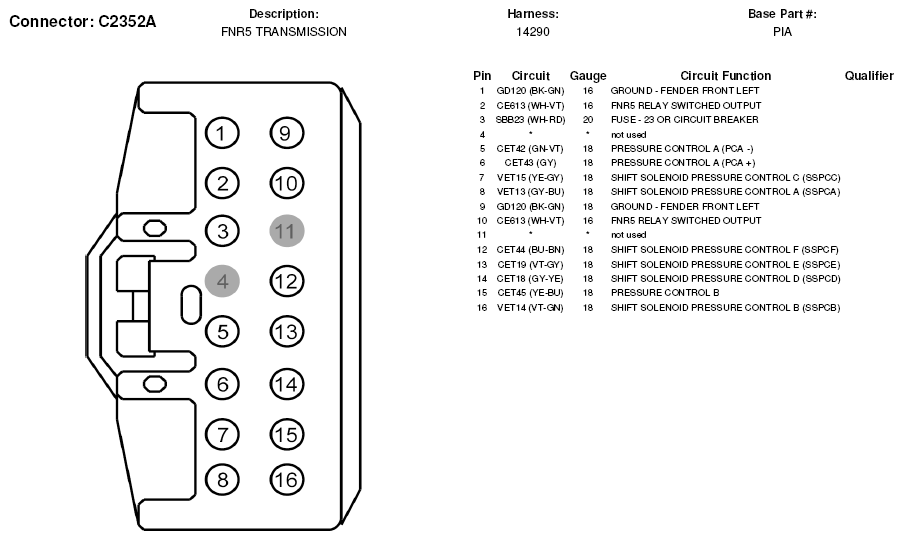

Fig 1: FNR5 Transmission Control Module Connector End View (C2352A)

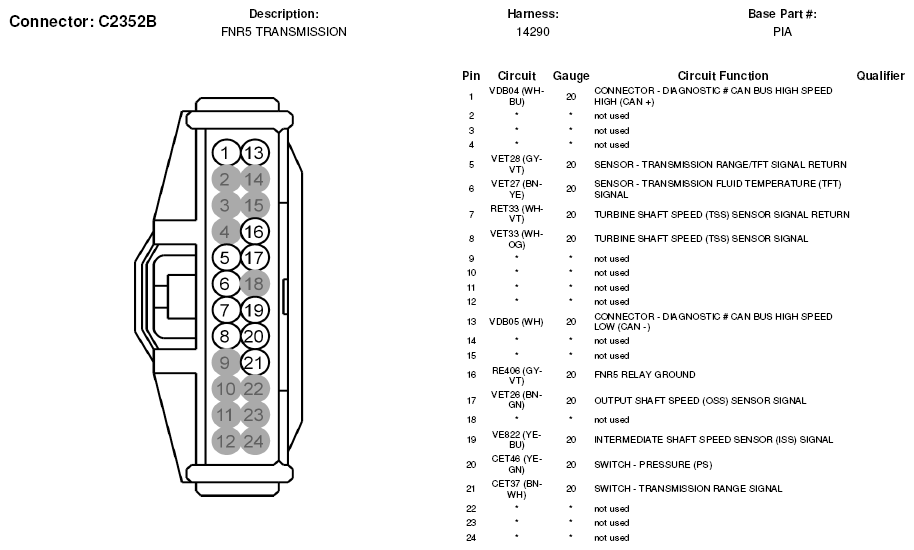

Fig 2: FNR5 Transmission Control Module Connector End View (C2352B)
