Exhaust Gas Recirculation (EGR) System Module Tube: Notes

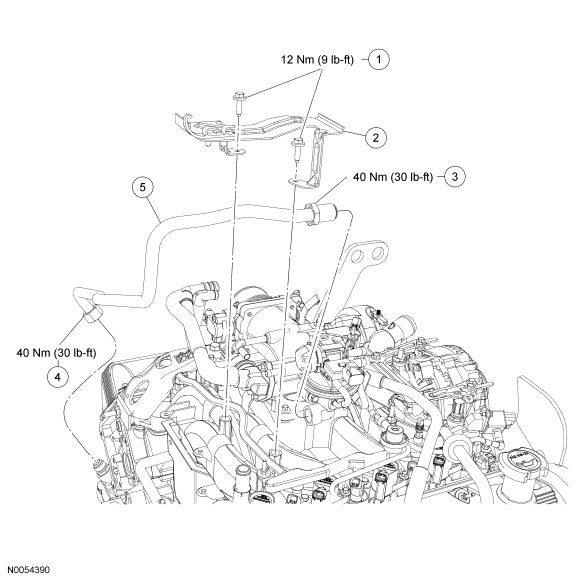

Fig 1: Exploded View Of Exhaust Gas Recirculation EGR System Module Tube With Torque Specifications
GF0013778Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N807309S Intake manifold shield retaining bolts
2 9F460A Intake manifold shield
3 - Exhaust gas recirculation (EGR) system tube fitting (part of 9D477)
4 - EGR system tube nut (part of 9D477)
5 9D477 EGR system tube
