Fuel Rail and Fuel Injector - Exploded View

Fig 1: Exploded View Of Fuel Rail And Fuel Injector With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	13A506	Wire harness retainer
2	9C490	Brake booster vacuum hose
3	9D289	Evaporative emission (EVAP) canister purge valve tube
4	6K817	Positive crankcase ventilation (PCV) tube
5	9E499	Intake manifold vacuum hose
6	W701725	Intake manifold crash bracket bolt
7	W705793	Intake manifold crash bracket bolt
8	9G609	Intake manifold crash bracket
9	13A506	Wire harness retainer
10	14A464	Fuel injector electrical connector (8 required) (part of 12B637)

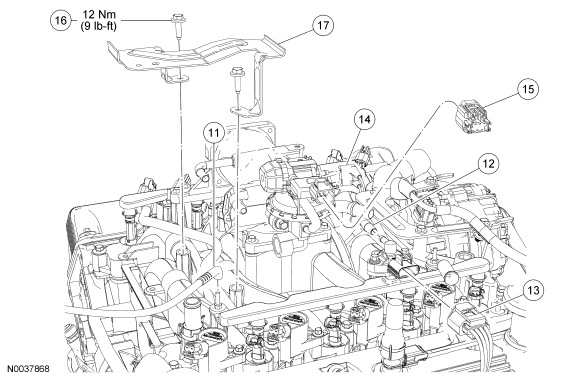

Fig 2: Exploded View Of Fuel Rail And Fuel Injector With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	14A464	Ground wire connector (part of 12B637)
12	9E489	Fuel rail pressure and temperature sensor vacuum connector
13	14A464	Fuel rail pressure and temperature sensor electrical connector (part of 12B637)
14	9E489	Exhaust gas recirculation (EGR) system module vacuum connector
15	14A464	EGR system module electrical connector (part of 12B637)
16	N807309	Intake manifold shield bolt (2 required)
17	9F460	Intake manifold shield

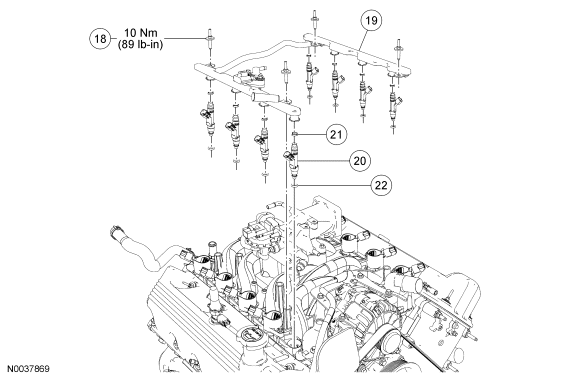

Fig 3: Exploded View Of Fuel Rail And Fuel Injector With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
18	N811425	Fuel rail stud bolt (4 required)
19	9F792	Fuel rail
20	9F593	Fuel injector (8 required)
21	9229	Fuel injector upper O-ring seal (8 required)
22	9229	Fuel injector lower O-ring seal (8 required)
