Intake Manifold: Notes

Fig 1: Exploded View Of Intake Manifold Components (With Torque Specifications - 1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Fuel injector electrical connector (8 required) (part of 12B637)
2	9C490	Brake booster vacuum hose
3	9D289	Evaporative emission (EVAP) canister purge valve tube
4	6K817	Positive crankcase ventilation (PCV) tube
5	14A464	Generator electrical connector (part of 12B637)
6	N807309	Generator bracket bolt (4 required)
7	10153	Generator bracket
8	14A464	Throttle control electrical connector (part of 12B637)
9	14A464	Throttle position (TP) sensor electrical connector (part of 12B637)
10	13A506	Wire harness retainer
11	W705793	Intake manifold crash bracket bolt
12	W701725	Intake manifold crash bracket bolt
13	13A506	Wire harness retainer
14	13A506	Wire harness retainer

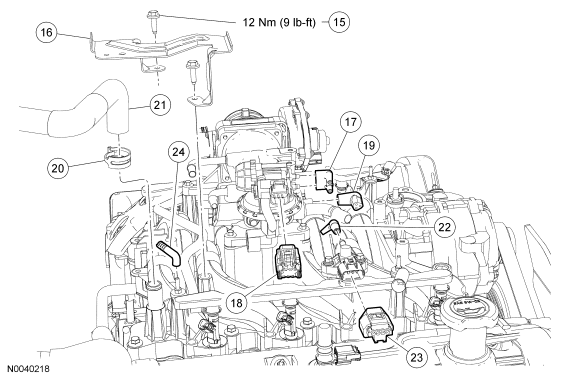

Fig 2: Exploded View Of Intake Manifold Components (With Torque Specifications - 2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
15	N807309	Intake manifold shield bolt (2 required)
16	9F460	Intake manifold shield
17	9E489	Exhaust gas recirculation (EGR) system module vacuum connector
18	14A464	EGR system module electrical connector (part of 12B637)
19	9E499	Intake manifold vacuum hose
20	15161	Heater hose spring clamp
21	18D334	Heater hose
22	9E489	Fuel rail pressure and temperature sensor vacuum connector
23	14A464	Fuel rail pressure and temperature sensor electrical connector (part of 12B637)
24	14A464	Ground wire connector (part of 12B637)

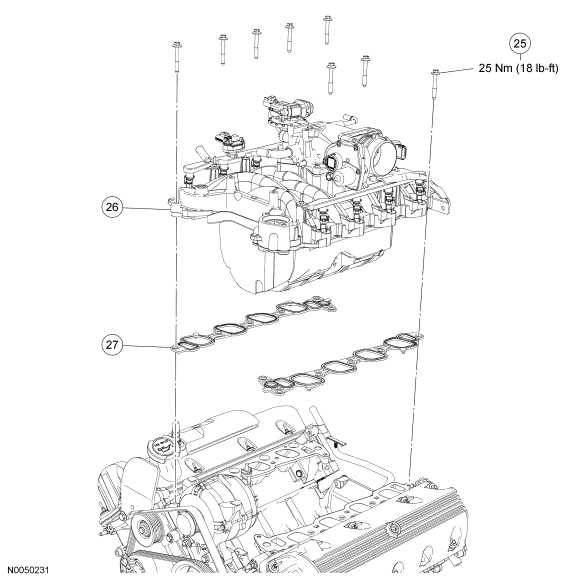

Fig 3: Exploded View Of Intake Manifold Components (With Torque Specifications - 3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
25	N808130	Intake manifold bolt (8 required)
26	9424	Intake manifold
27	9439	Intake manifold gasket (2 required)
