Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left side of engine compartment. See Figure. |
| Air Suspension Module | Under lower center of dash. See Figure. |

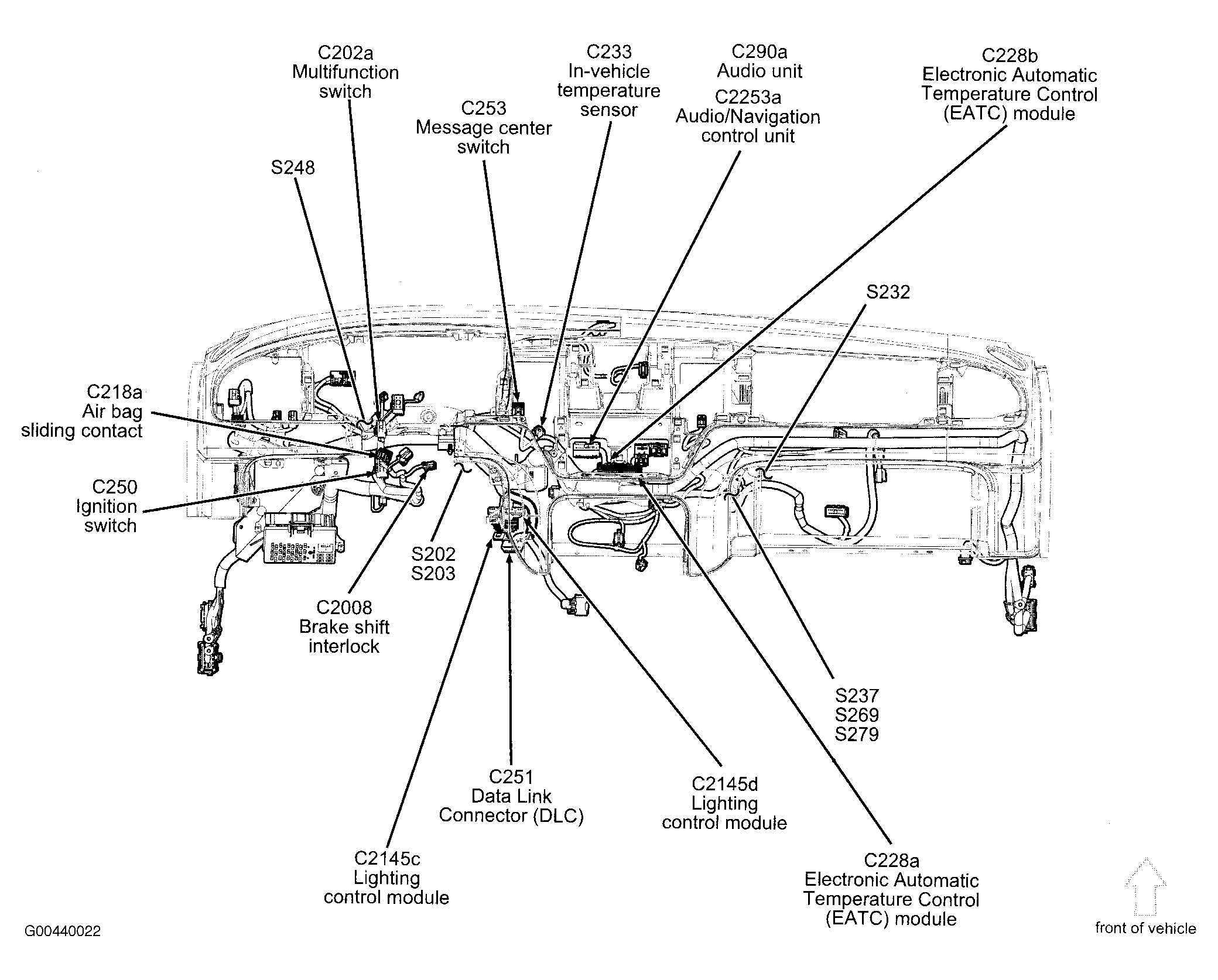

| Audio/Navigation Control Unit | Behind center of dashboard. See Figure. |
| Door Lock Unit, Driver Side Front | Bottom rear of driver's door. See Figure. |
| Door Lock Unit, Left Rear | Left rear door. See Figure. |
| Door Lock Unit, Passenger Side Front | Bottom rear of right front door. See Figure. |
| Door Lock Unit, Right Rear | Rear of right rear door. See Figure. |

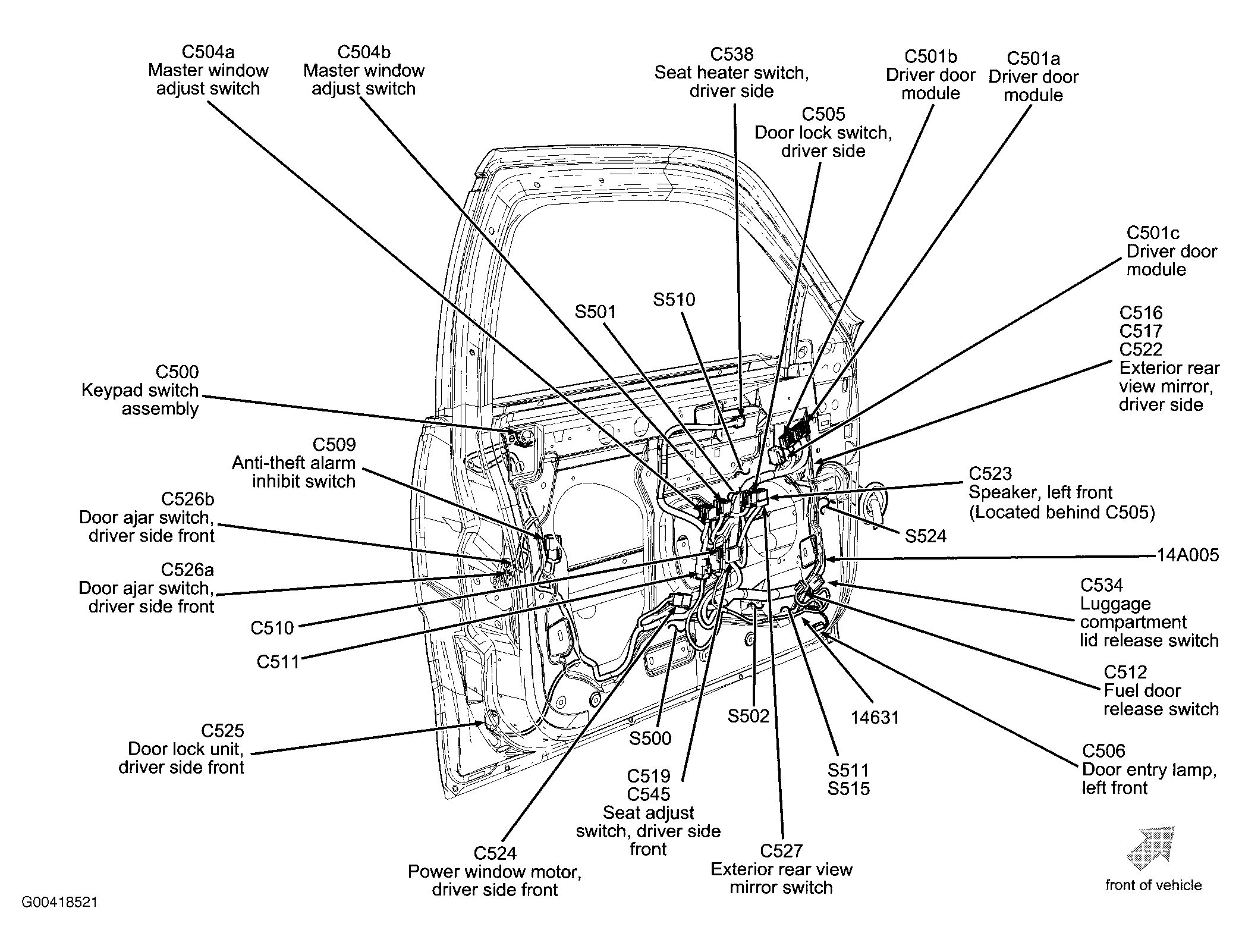

| Driver Door Module | In top front of left front door. See Figure. |

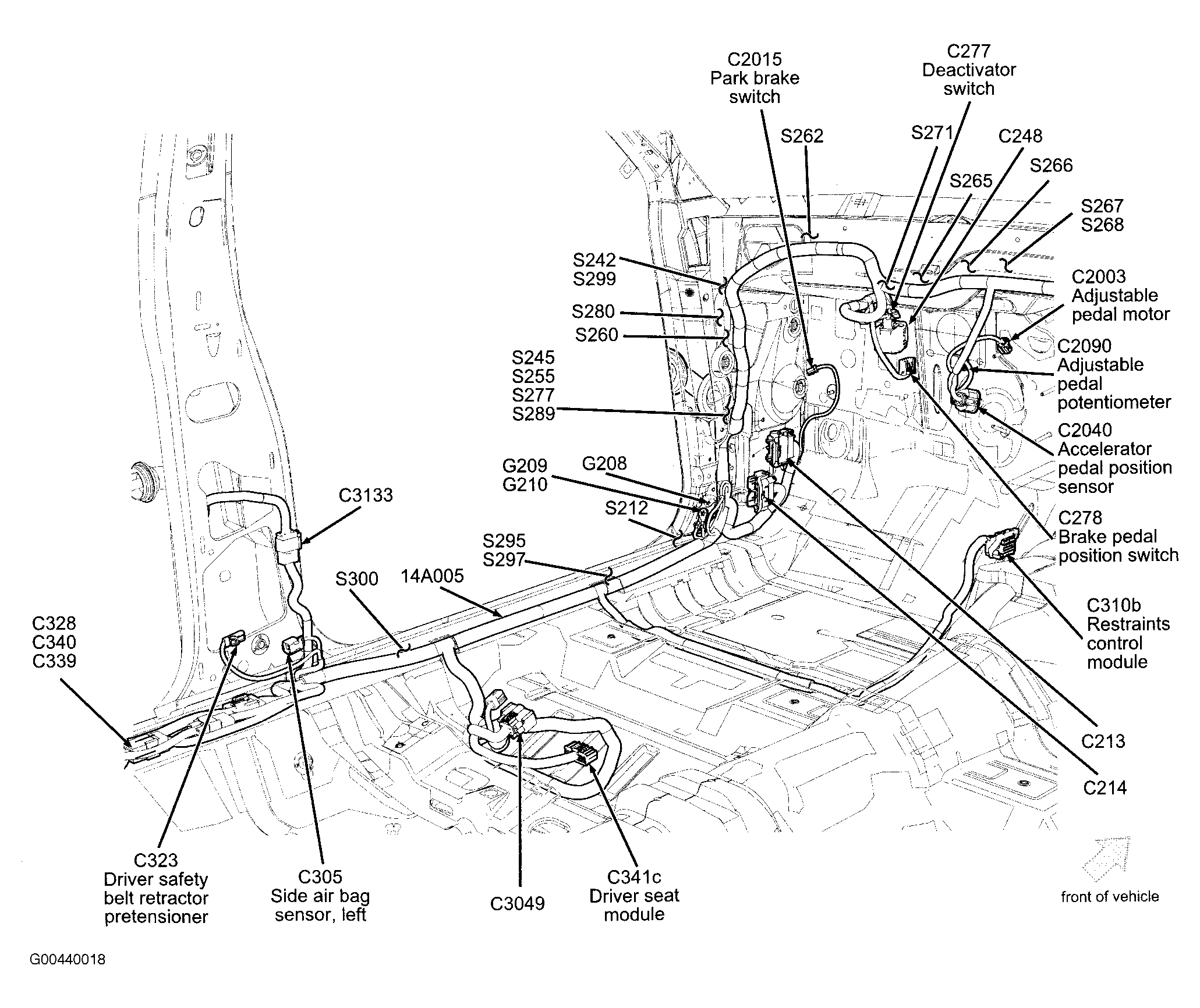

| Driver Seat Module | Under driver's seat. See Figure. |

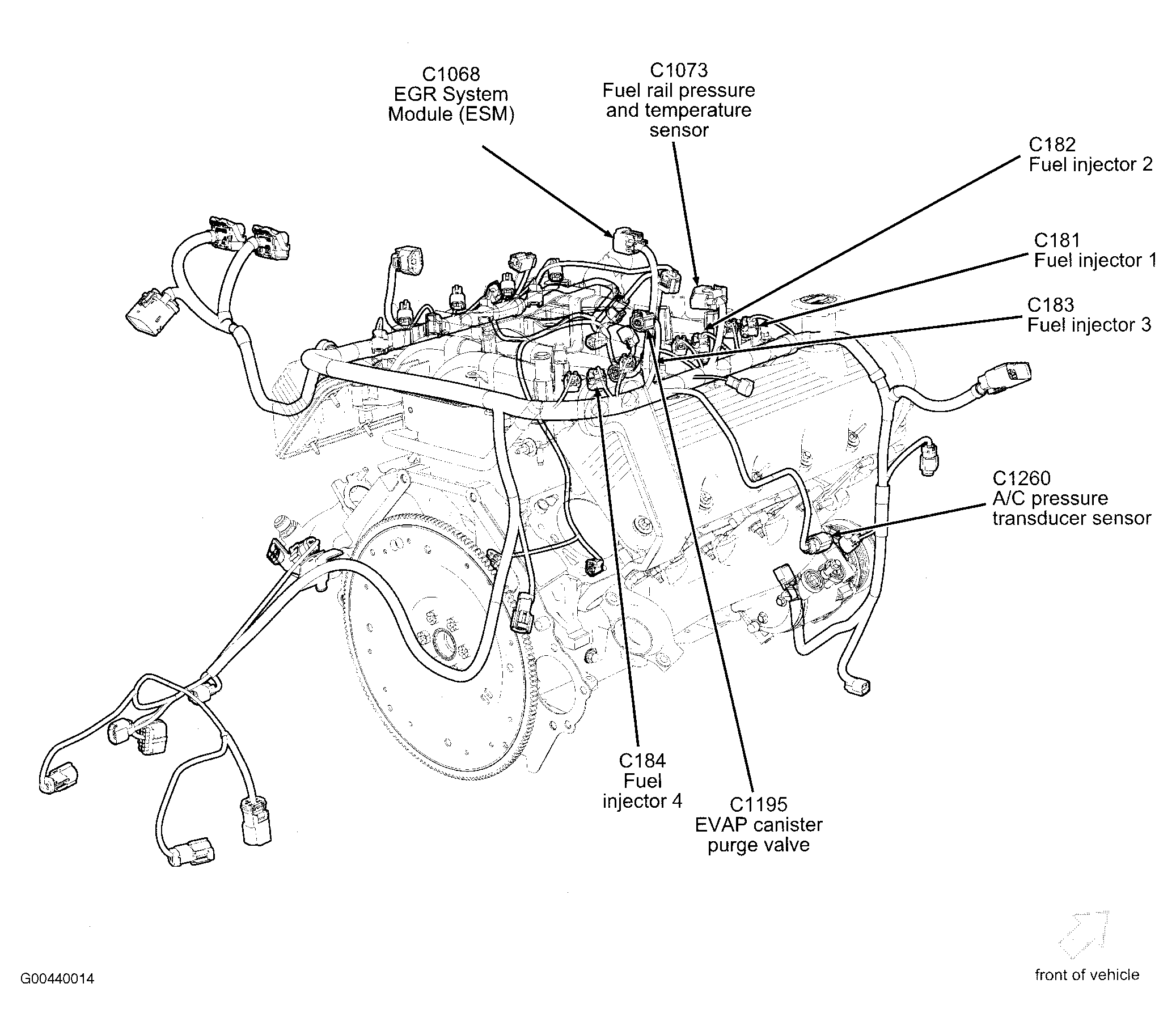

| EGR System Module (ESM) | Top of engine. See Figure. |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure. |
| Electronic Throttle Control (ECT) Module | Top left rear of engine. See Figure. |
| Engine Cooling Fan Module | Front of engine compartment. See Figure. |

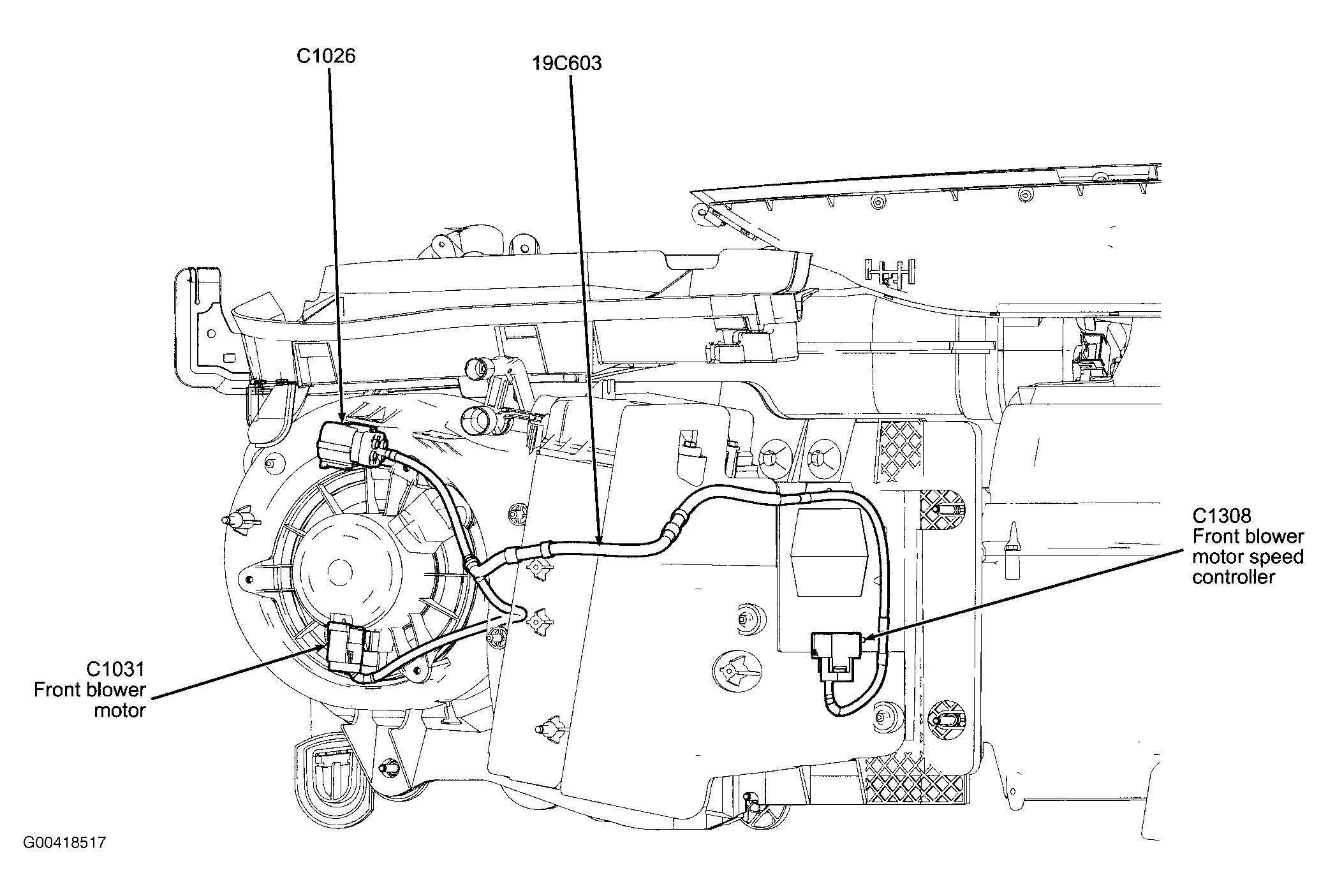

| Front Blower Motor Speed Controller | In right rear of engine compartment, on evaporator housing. See Figure. |

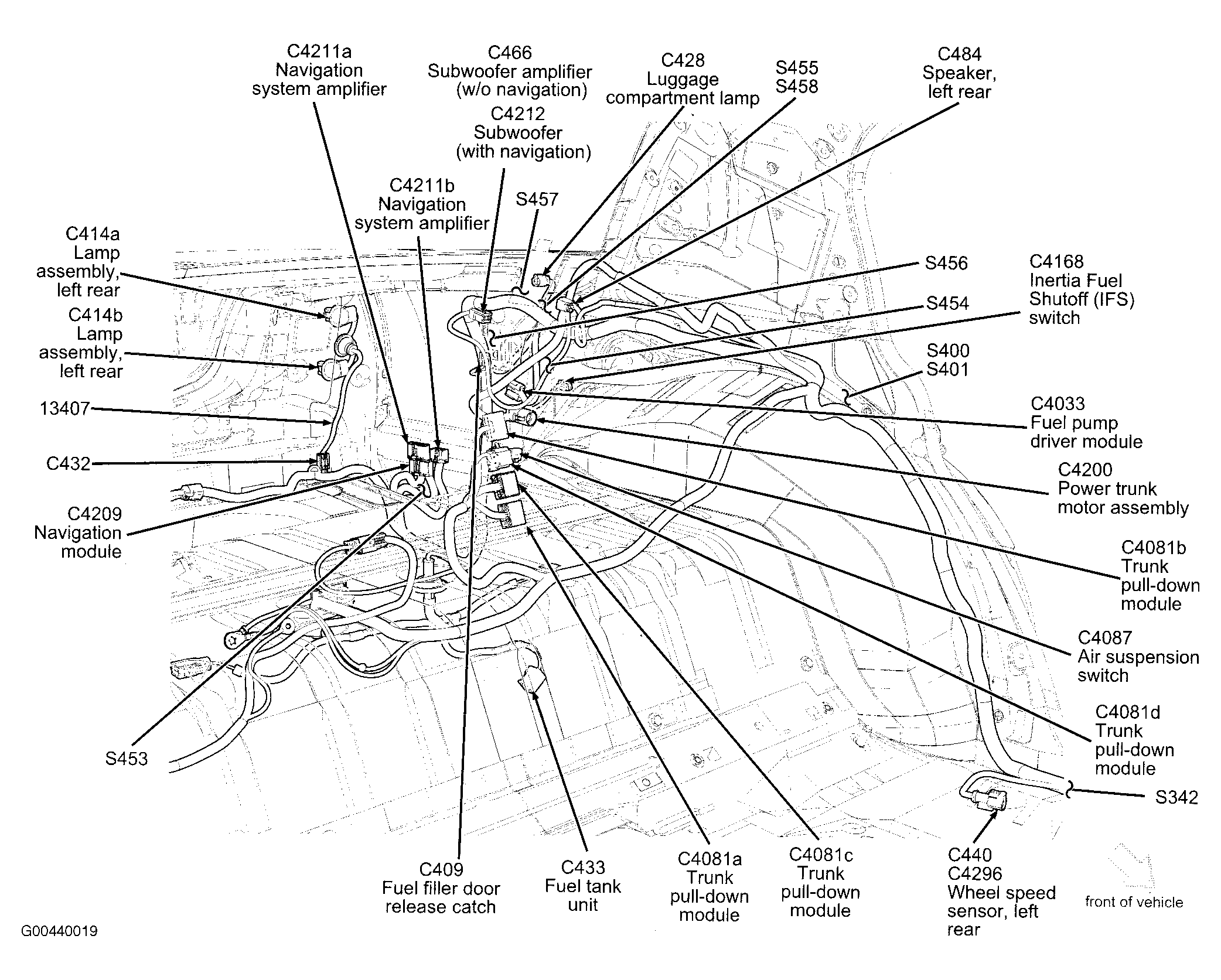

| Fuel Pump Driver Module | At left side of trunk. See Figure. |
| Heated Seat Module, Left Rear | In left rear seat. See Figure. |
| Heated Seat Module, Passenger Side Front | Under passenger's seat. See Figure. |
| Heated Seat Module, Right Rear | In right rear seat. See Figure. |
| Isolator/Radio Antenna Module | Center of trunk. See Figure. |
| Lighting Control Module | Under lower left side of dash. See Figure. |
| Navigation Module | Center of trunk. See Figure. |
| Occupant Classification Sensor Module | In passenger's seat. See Figure. |

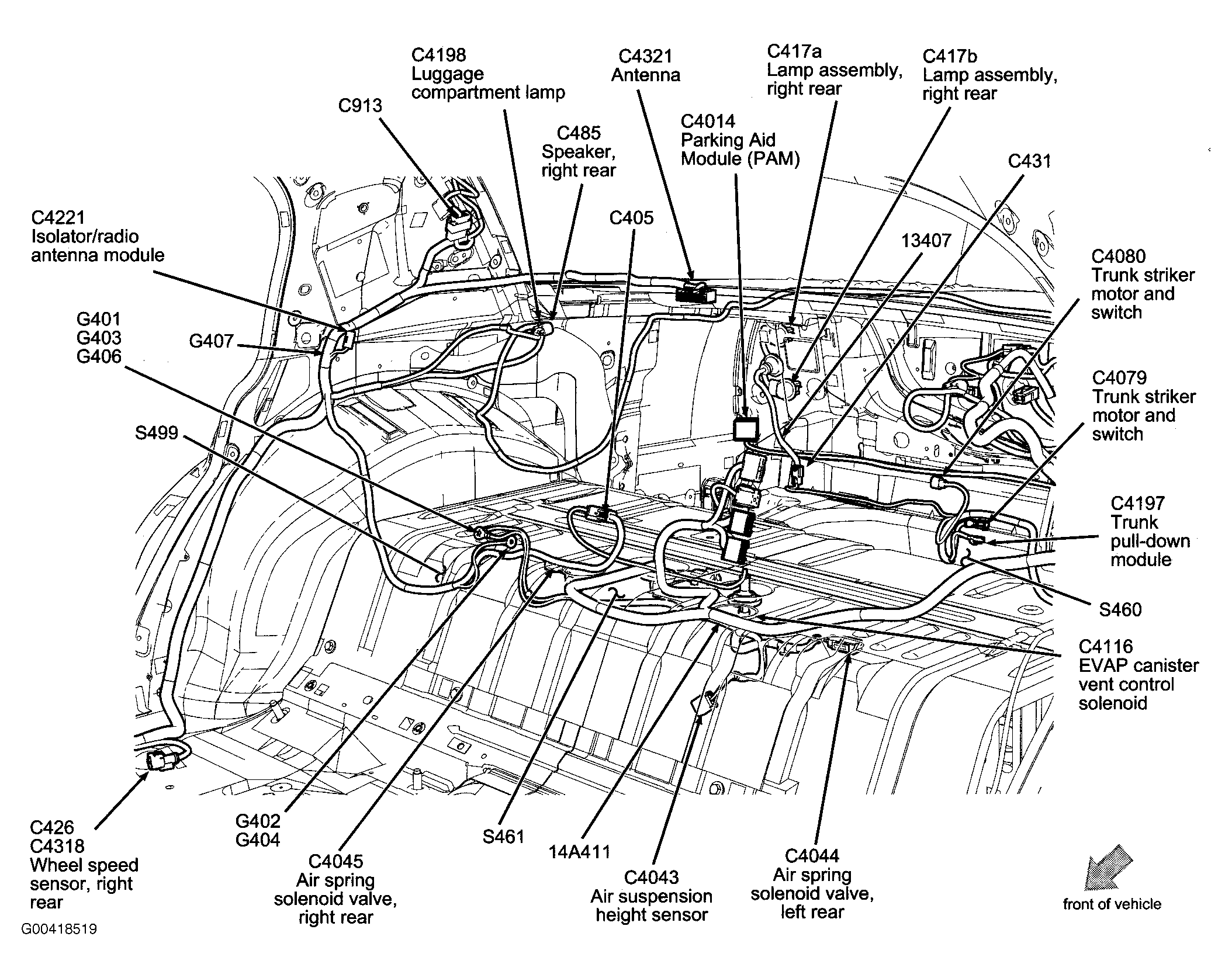

| Parking Aid Module (PAM) | At right side of trunk. See Figure. |
| Passive Anti-Theft Transceiver Module | At top of steering column. See Figure. |
| Powertrain Control Module | Left rear side of engine compartment. See Figure. |

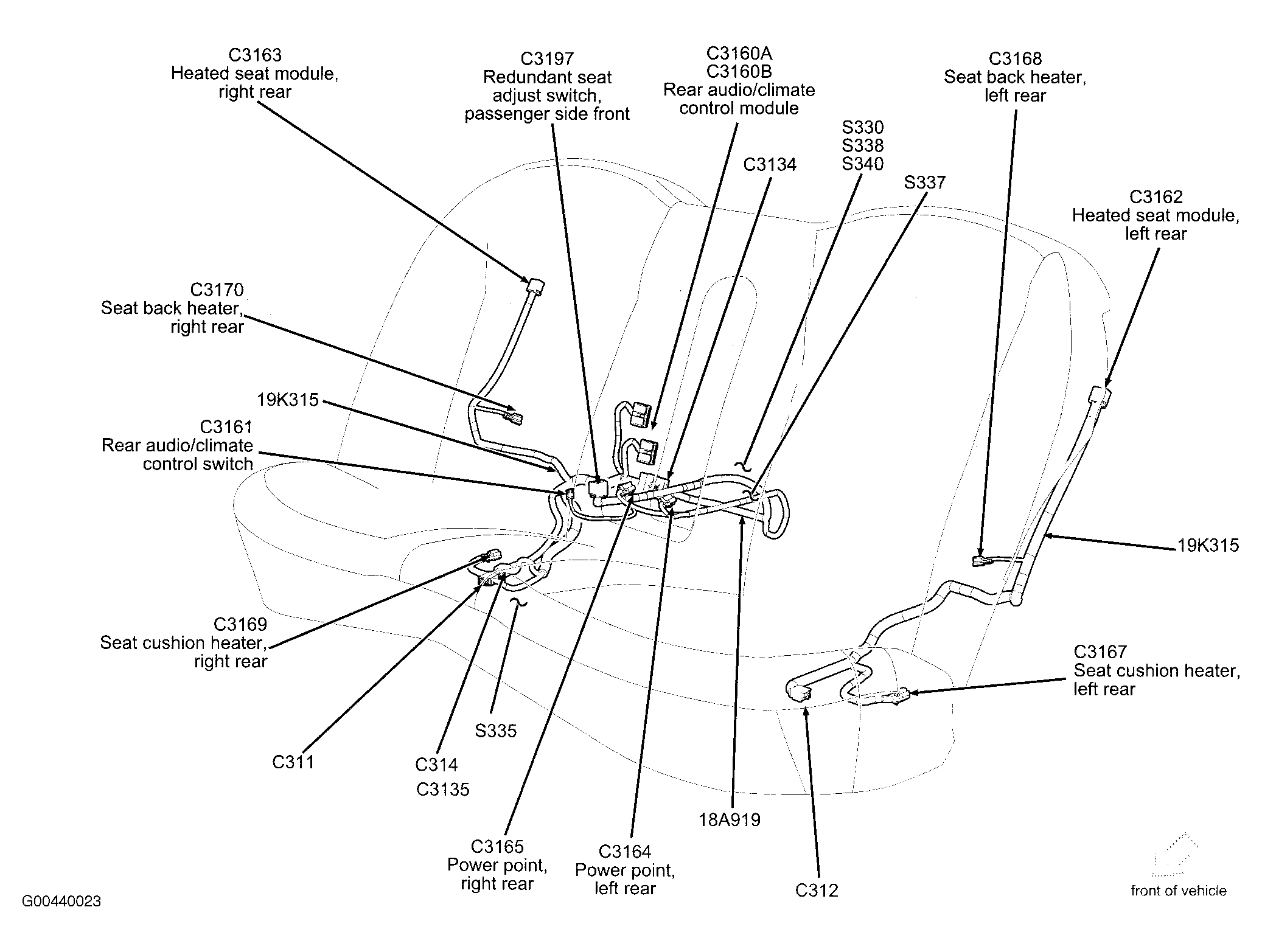

| Rear Audio/Climate Control Module | Under right rear seat. See Figure. |
| Restraints Control Module | At center floor pan. See Figure. |

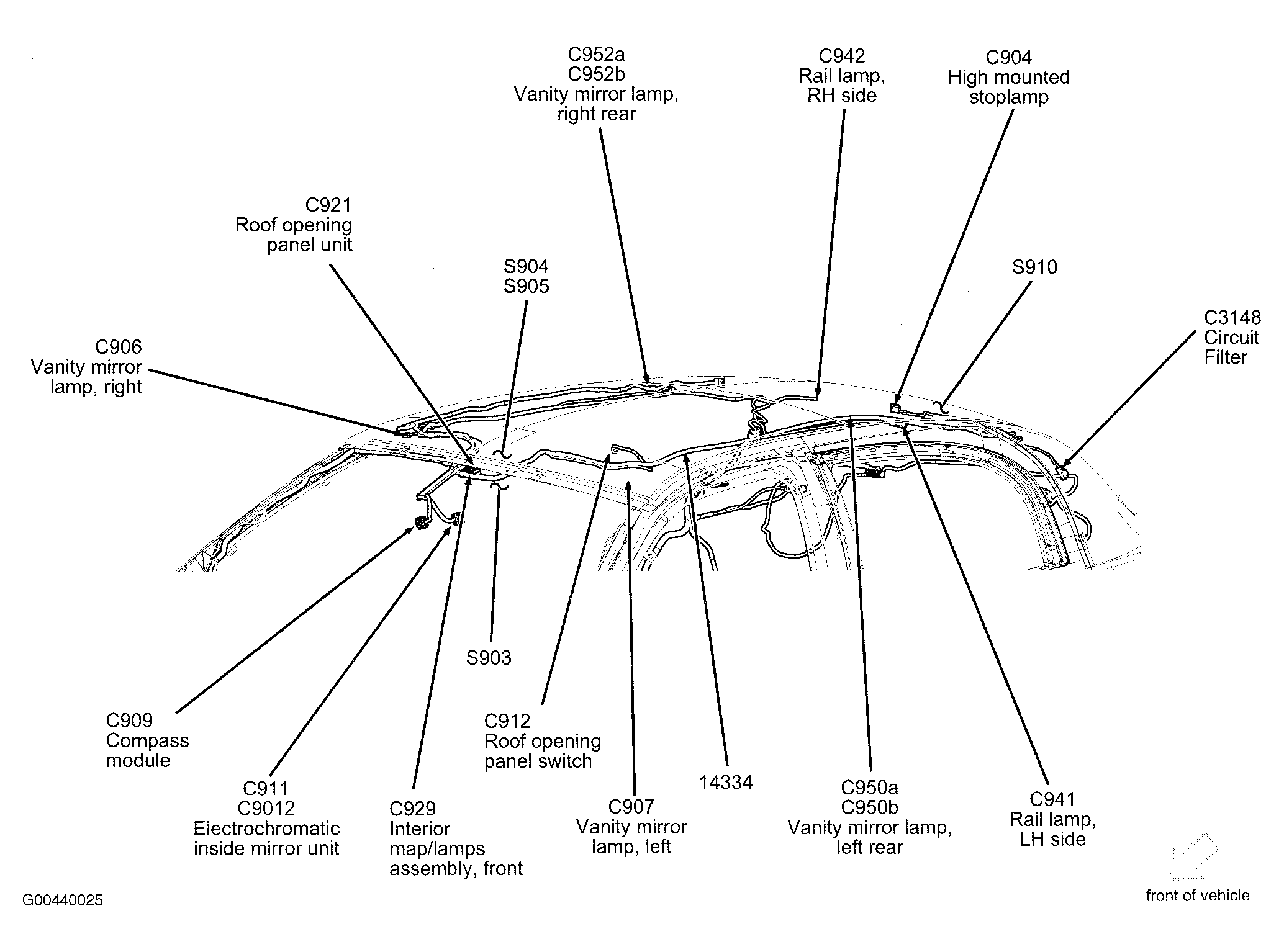

| Roof Opening Panel Unit | At center front of roof. See Figure. |
| Side Air Bag Module, Left | Driver's seat back. See Figure. |
| Side Air Bag Module, Right | Right side of passenger's seat back. See Figure. |
| Trunk Pull-Down Module | Center rear of trunk. See Figure. |
