Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00440012

Courtesy of FORD MOTOR CO.

Fig 2: Front Of Engine Compartment

G00440013

Courtesy of FORD MOTOR CO.

Fig 3: Front Of Engine

G00360898

Courtesy of FORD MOTOR CO.

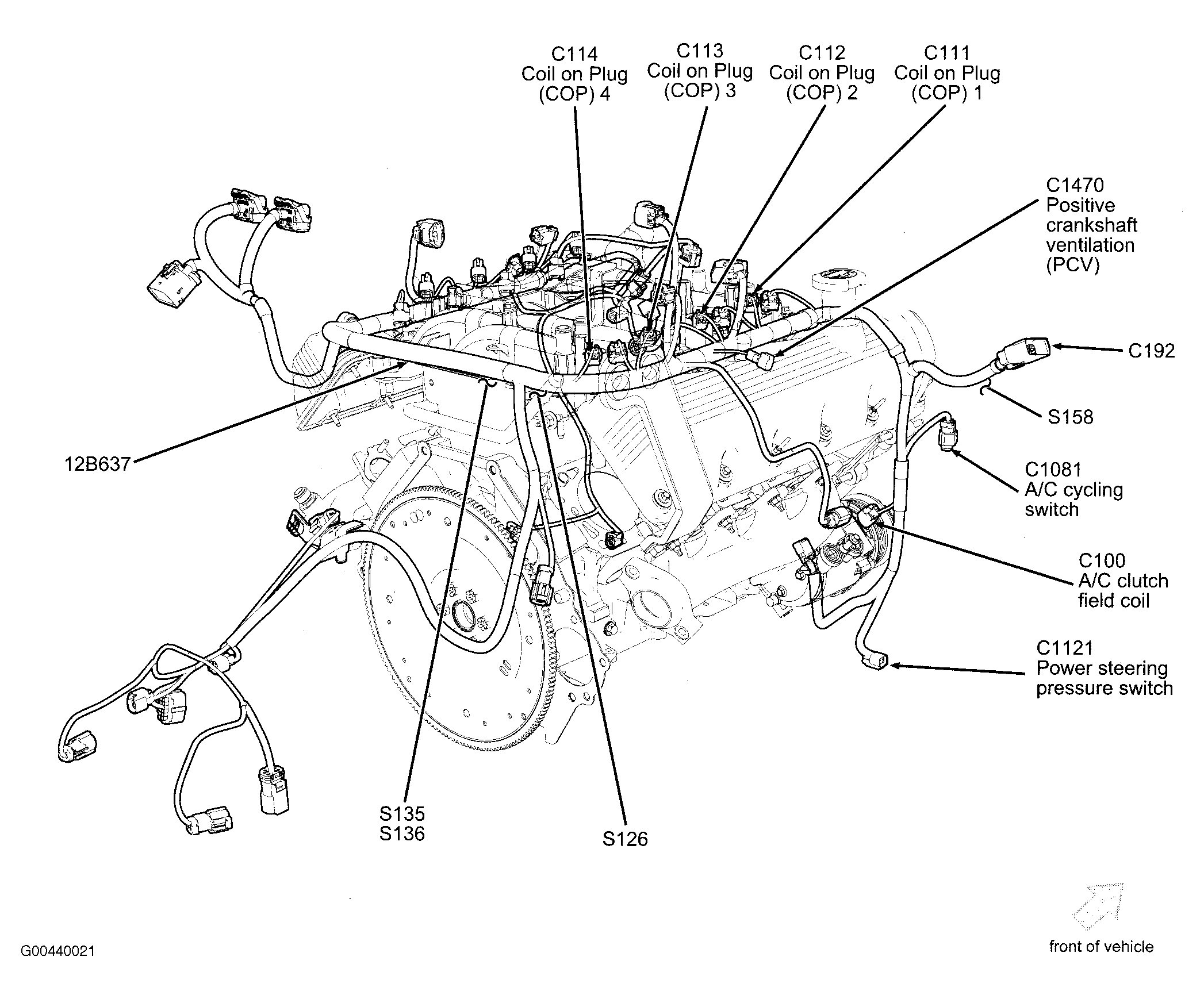

Fig 4: Rear Of Engine

G00440021

Courtesy of FORD MOTOR CO.

Fig 5: Rear Of Engine

G00440014

Courtesy of FORD MOTOR CO.

Fig 6: Transmission Assembly

G00360901

Courtesy of FORD MOTOR CO.

Fig 7: Rear Of Engine Compartment

G00418517

Courtesy of FORD MOTOR CO.

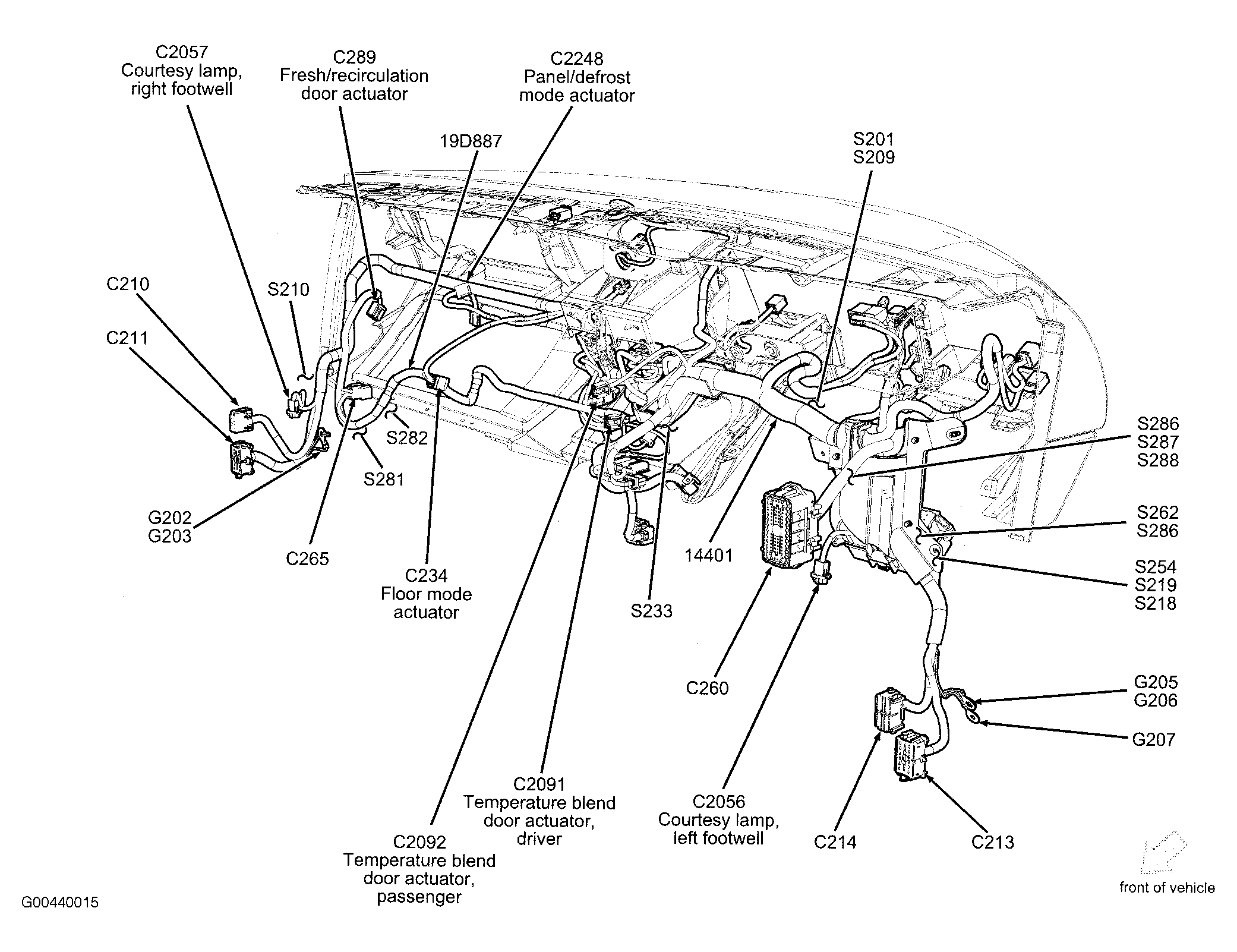

Fig 8: Dash Panel

G00440015

Courtesy of FORD MOTOR CO.

Fig 9: Dash Panel

G00440016

Courtesy of FORD MOTOR CO.

Fig 10: Dash Panel

G00440022

Courtesy of FORD MOTOR CO.

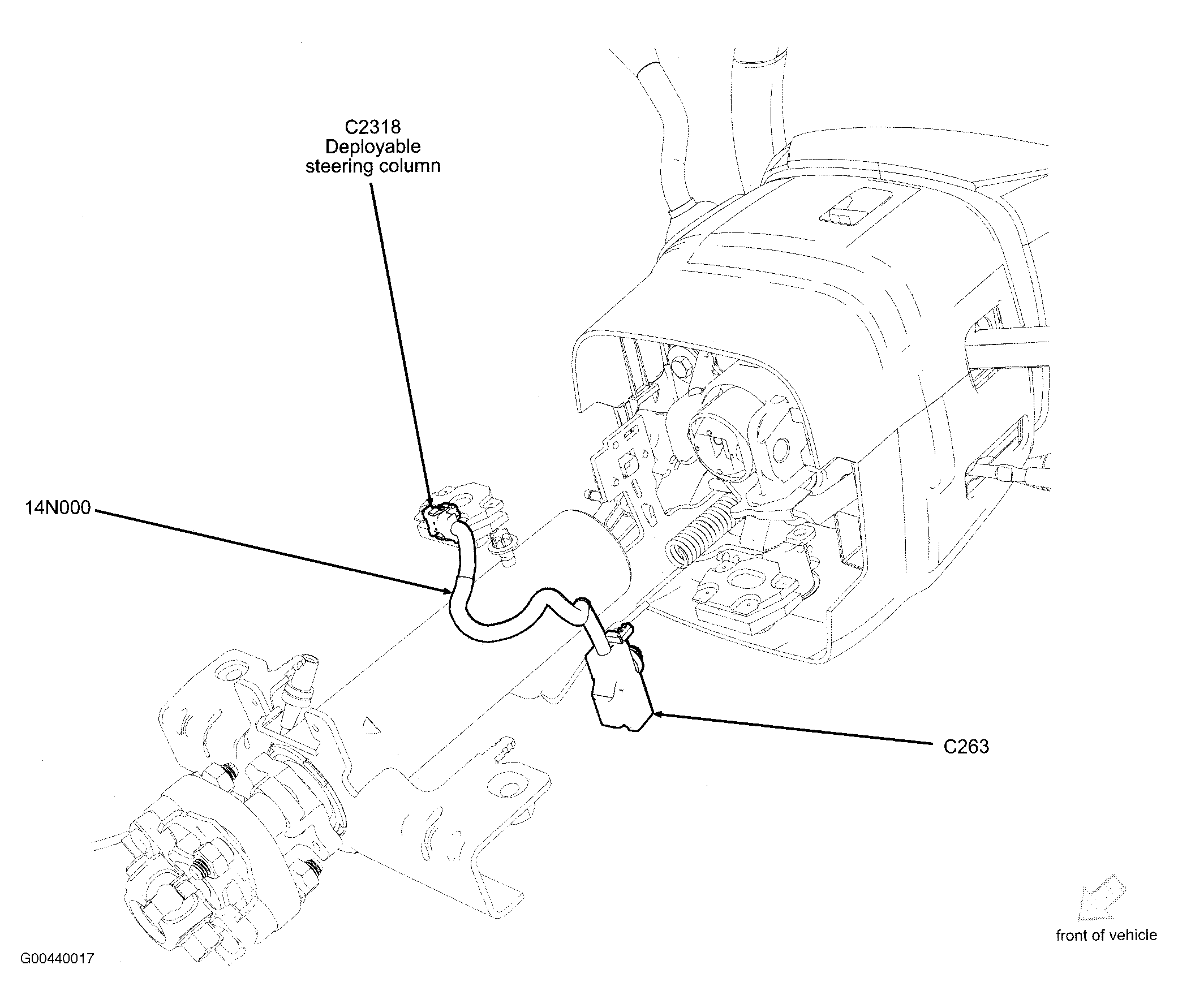

Fig 11: Steering Column Assembly

G00440017

Courtesy of FORD MOTOR CO.

Fig 12: Steering Wheel Assembly

G00360907

Courtesy of FORD MOTOR CO.

Fig 13: Left Front Of Passenger Compartment

G00440018

Courtesy of FORD MOTOR CO.

Fig 14: Left Rear Body

G00440019

Courtesy of FORD MOTOR CO.

Fig 15: Right Rear Body

G00418519

Courtesy of FORD MOTOR CO.

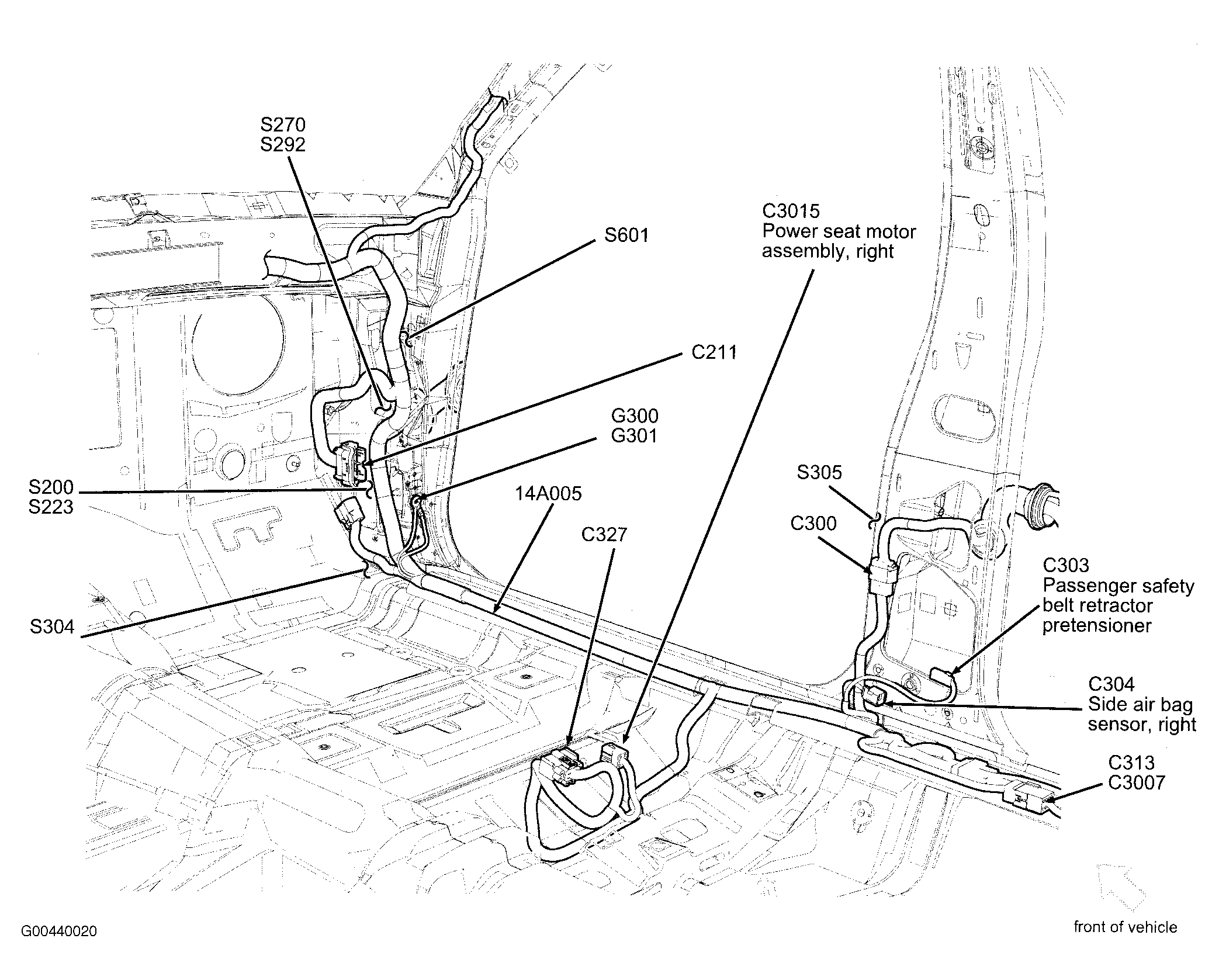

Fig 16: Right Front Body

G00440020

Courtesy of FORD MOTOR CO.

Fig 17: Left Front Seat

G00360912

Courtesy of FORD MOTOR CO.

Fig 18: Right Front Seat

G00360913

Courtesy of FORD MOTOR CO.

Fig 19: Rear Seats

G00440023

Courtesy of FORD MOTOR CO.

Fig 20: Left Front Door

G00418521

Courtesy of FORD MOTOR CO.

Fig 21: Right Front Door

G00360916

Courtesy of FORD MOTOR CO.

Fig 22: Left Rear Door

G00360917

Courtesy of FORD MOTOR CO.

Fig 23: Left Rear Door

G00360918

Courtesy of FORD MOTOR CO.

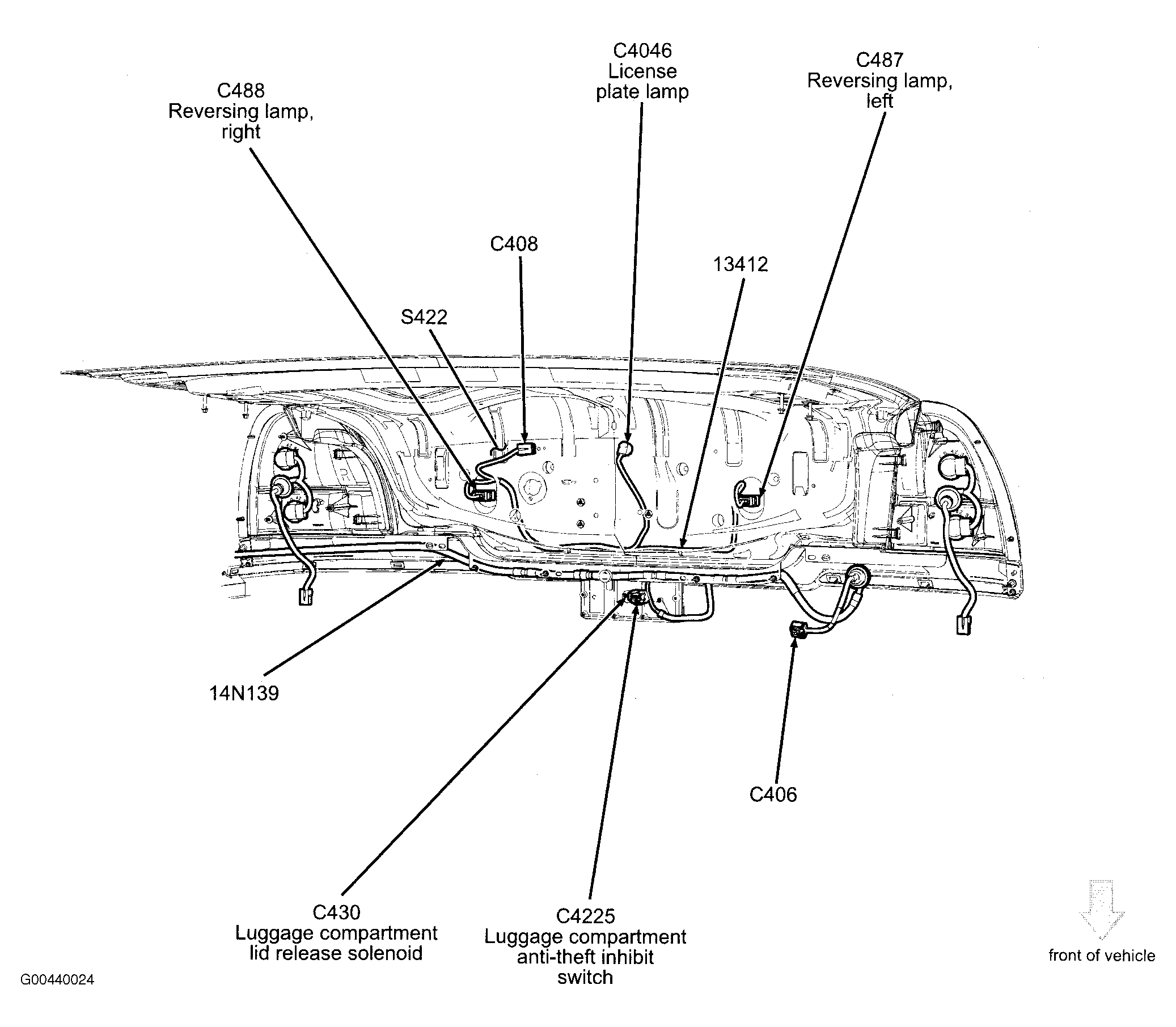

Fig 24: Trunk lid

G00440024

Courtesy of FORD MOTOR CO.

Fig 25: Roof

G00440025

Courtesy of FORD MOTOR CO.

Fig 26: Central Junction Box (CJB)

G00360895

Courtesy of FORD MOTOR CO.

Fig 27: Battery Junction Box (BJB)

G00360921

Courtesy of FORD MOTOR CO.
