Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
A/C Compressor Clutch Diode In battery junction box (BJB). See Figure.

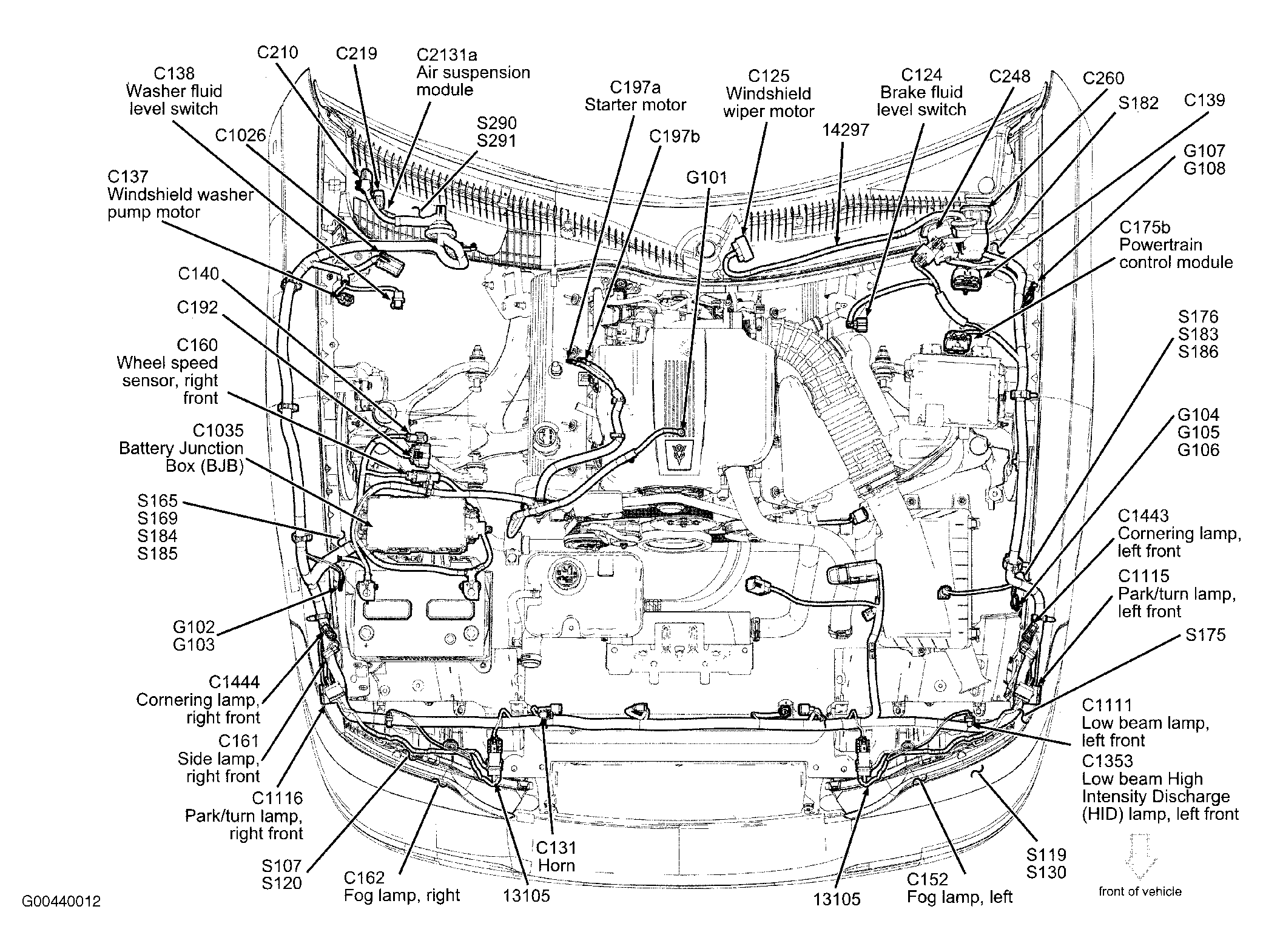

Battery Junction Box (BJB) At right of engine compartment. See Figure.

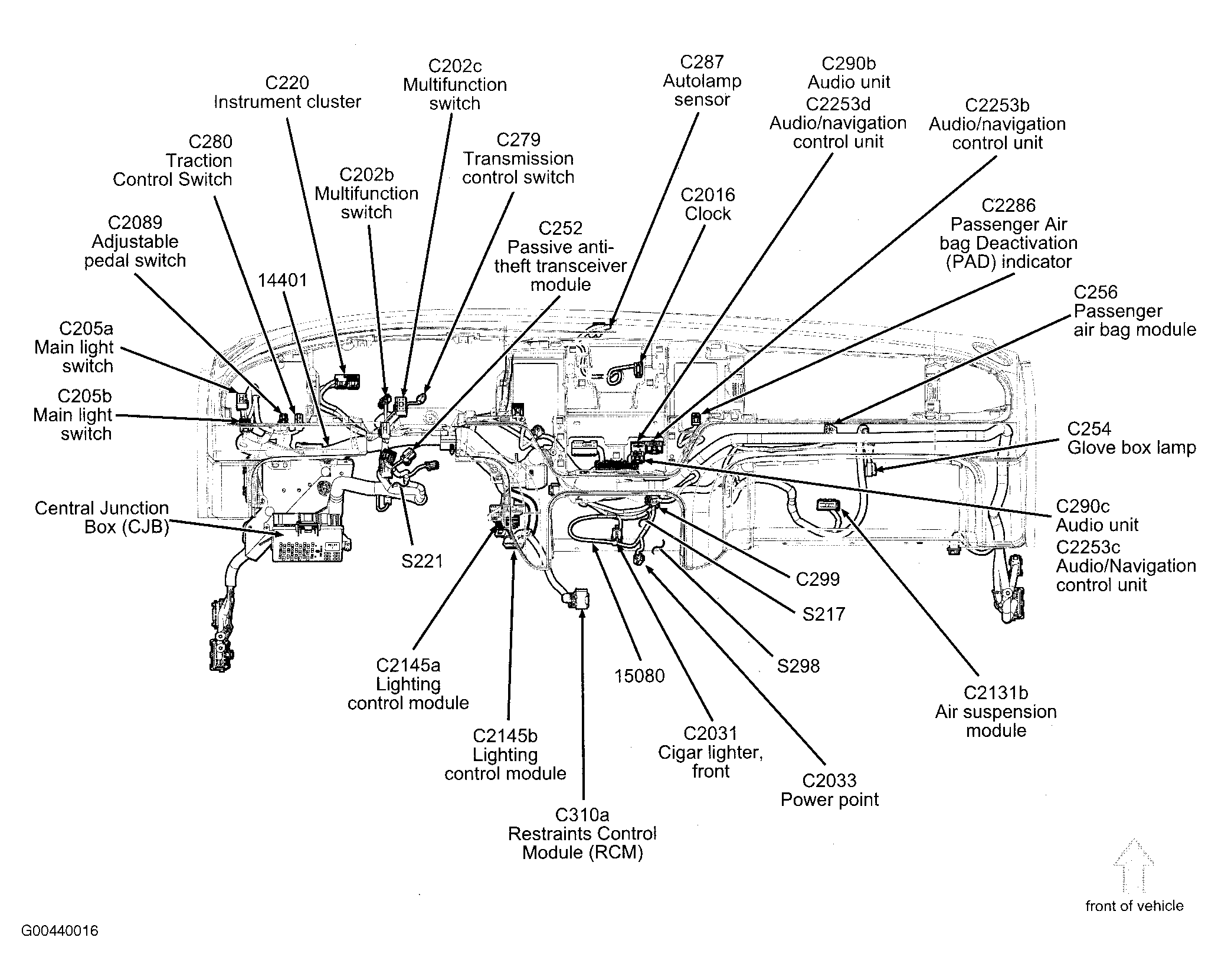

Central Junction Box Behind left side of dash, to left of steering column. See Figure.

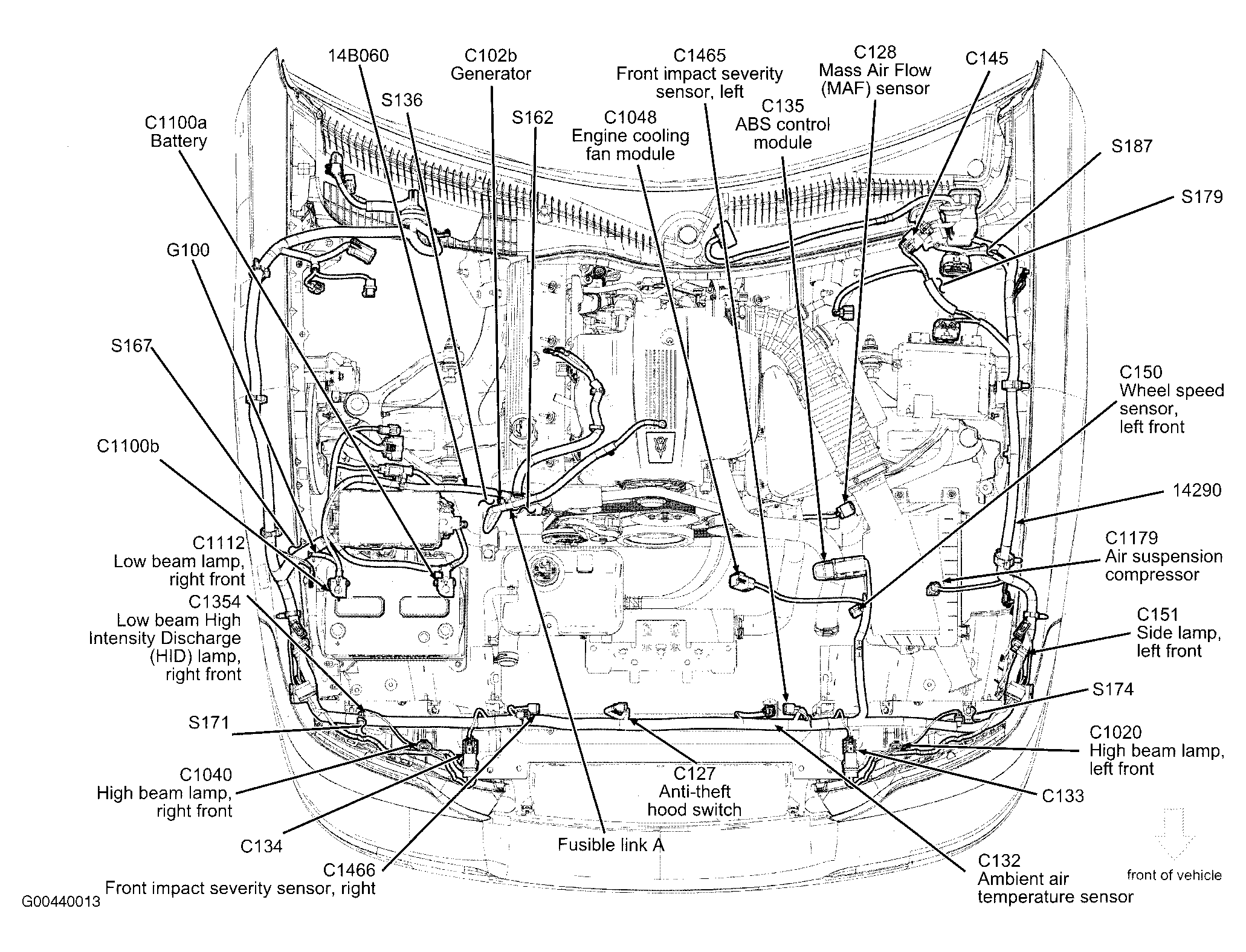

Fusible Link A Right front of engine. See Figure.
Ground Diode In battery junction box (BJB). See Figure.
Ignition Transformer Capacitor Left front of engine. See Figure.
PCM Power Diode In battery junction Box (BJB). See Figure.
