Transmission Control Switch Connector

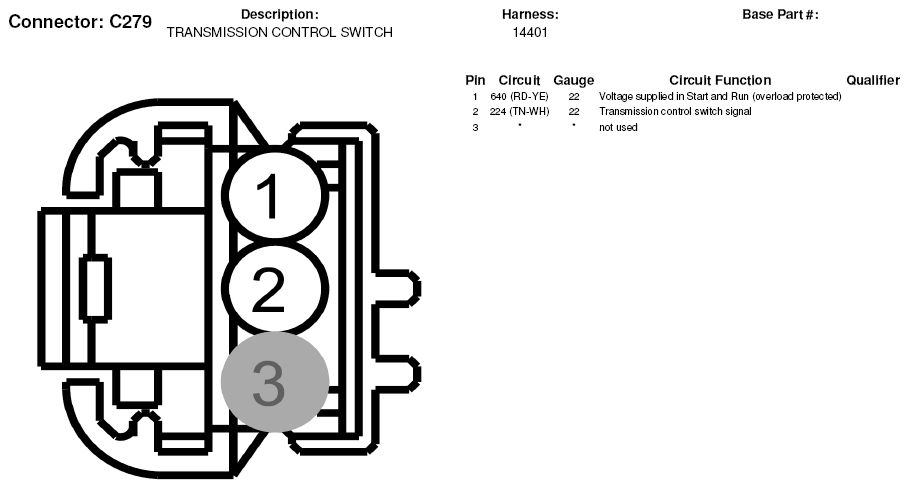

Fig 1: Transmission Control Switch Connector End View (C279)

G05179137

Courtesy of FORD MOTOR CO.
