Jacking Points - Front

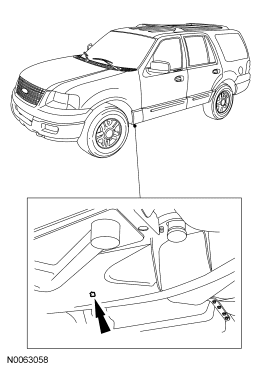

Fig 1: Front Jacking Points
GF0021119Courtesy of FORD MOTOR CO.

The front jacking point is indicated by an arrow cutout in the frame, located behind the front tire and wheel assembly.

After the vehicle has been lowered, enable the air suspension system. Refer to VEHICLE DYNAMIC SUSPENSION article.
