Output Shaft Seal: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Transmission Extension Housing Fluid Seal | 307-560 | |
| Installer, Fluid Pump Seal | 307-556 | |
| Remover, Input Shaft Oil Seal | 308-375 | |
| Slide Hammer | 100-001 (T50T-100-A) | |
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |
NOTE:

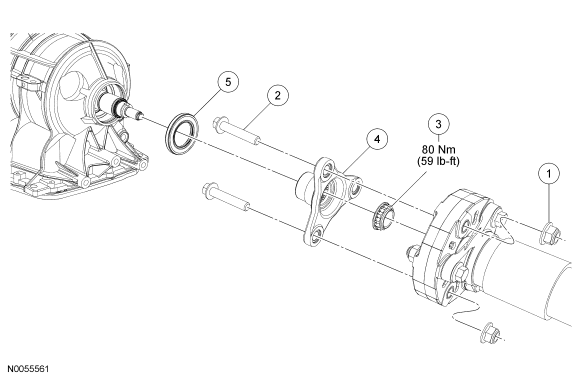

Rear wheel drive (RWD) shown, four wheel drive (4WD) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Rear driveshaft nuts (3 required) |
| 2 | - | Rear driveshaft bolts (3 required) |
| 3 | 7K440 | Output shaft flange nut |
| 4 | 7A021 | Output shaft flange |
| 5 | 7052 | Output shaft seal |
