Valve Cover - RH: Notes

Material

Item Specification
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4
PAG Refrigerant Compressor Oil (R-134a Systems)
YN-12-D		 WSH-M1C231-B

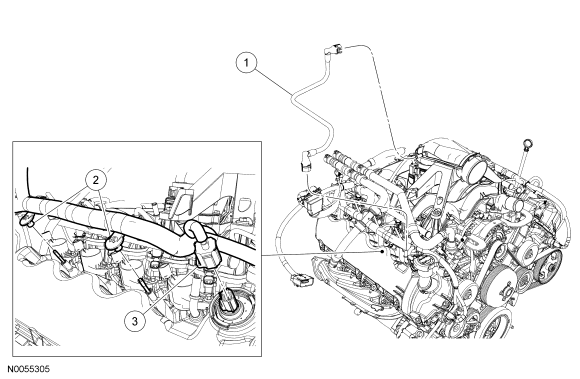

Fig 1: Exploded View Of Right Valve Cover - (1 Of 2) With Torque Specifications
GF0022003Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6758 Crankcase vent tube
2 - Engine wiring harness retainers (part of 12B637)
3 - Variable camshaft timing (VCT) solenoid electrical connector (part of 12B637)

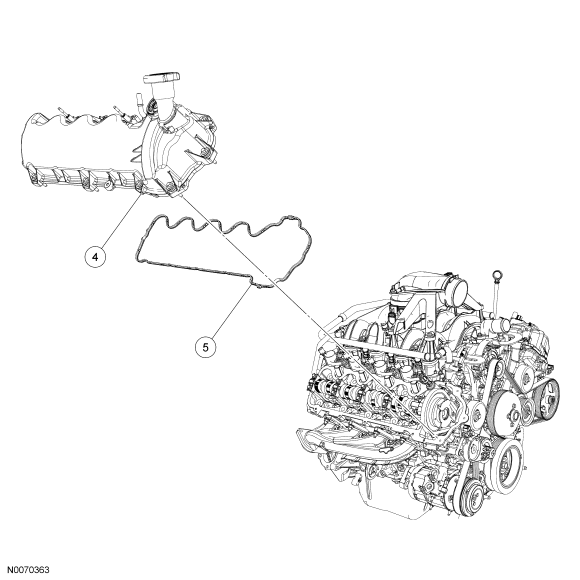

Fig 2: Exploded View Of Right Valve Cover - (2 Of 2) With Torque Specifications
GF0022004Courtesy of FORD MOTOR CO.
Item Part Number Description
4 6582 RH valve cover
5 6584 RH valve cover gasket
