Oil Level Indicator and Tube: Notes

Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent
WSS-M2C930-A

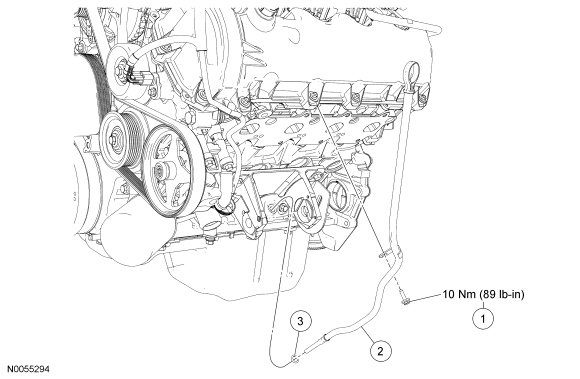

Fig 1: Exploded View Of Oil Level Indicator & Tube With Torque Specifications
GF0022030Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N605892 Oil level indicator and tube bolt
2 6K873 Oil level indicator and tube
3 - Oil level indicator tube O-ring seal
