Wheel Speed Sensor - Rear: Notes

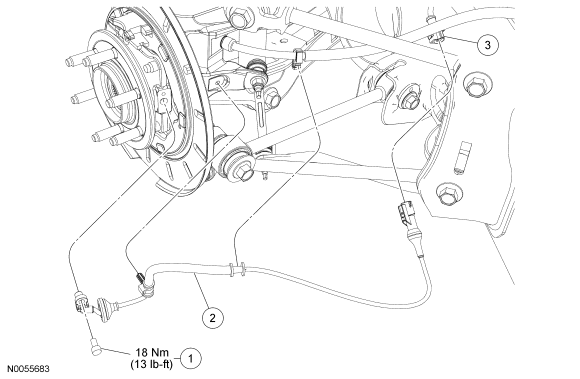

Fig 1: Exploded View Of Rear Wheel Speed Sensor With Torque Specifications
GF0022474Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Rear wheel speed sensor bolt (part of 2C190)
2 2C190 Rear wheel speed sensor
3 - Body harness electrical connector (part of 14A464)
