Seat - Exploded View, Second Row

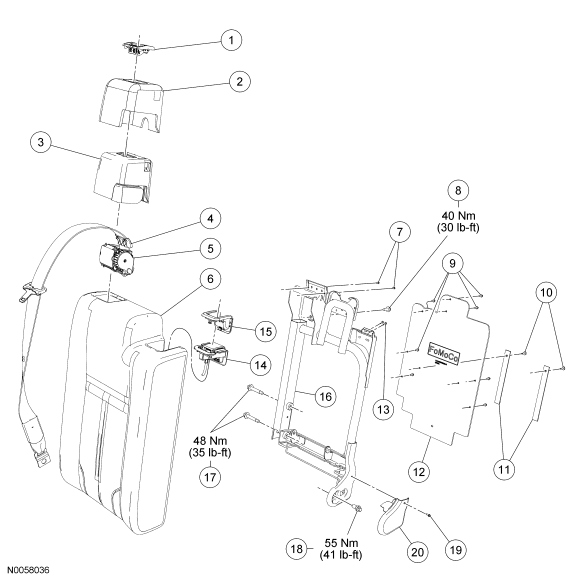

Fig 1: Exploded View Of Second Row Seat Backrest - 20 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	666C04	Safety belt guide cover
2	611D52	Foam, safety belt retractor cover
3	613C46	Safety belt retractor cover
4	-	Safety belt retractor guide (part of 611B64)
5	611B64	Safety belt retractor
6	66600/66800	Backrest trim cover/foam pad
7	W504042	Safety belt retractor cover screws (2 required)
8	W505274	Safety belt retractor bolt
9	-	Backrest support panel screws (8 required) (part of 613A38)
10	W701259	Pin-type retainers (2 required)
11	63518	Attaching straps (2 required)
12	613A38	Backrest support panel
13	-	Screws, release handle (2 required)
14	62418	Release handle
15	624A08	Release handle bezel
16	613A38	Backrest frame
17	W506542	Backrest-to-cushion bolts (2 required)
18	613F18	Pivot bolt
19	W504042	Screw, pivot bolt cover
20	62178	Pivot bolt cover

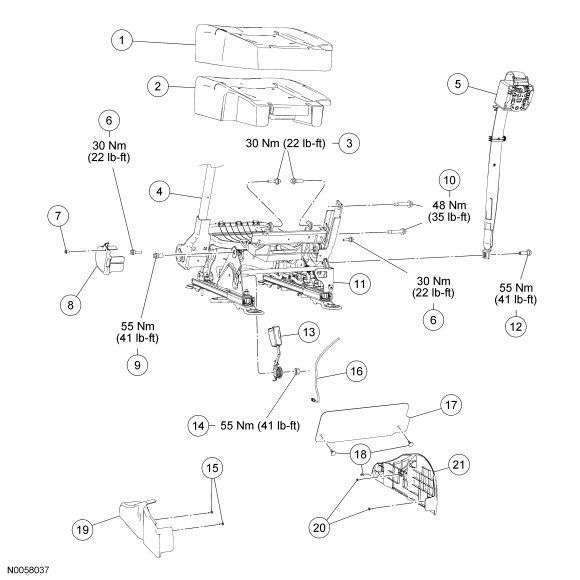

Fig 2: Exploded View Of Second Row Seat Cushion - 20 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	63804	Cushion trim cover
2	63840	Cushion foam pad
3	613F18	Swivel bolts
4	613A38	Backrest frame
5	611B64	Safety belt retractor
6	613F18	Seat riser-to-cushion frame bolts (2 required)
7	W504042	Screw, LH pivot bolt cover
8	62178	Pivot bolt cover
9	613F18	Pivot bolt
10	W506542	Backrest-to-cushion bolts (2 required)
11	63160	Cushion frame
12	-	Safety belt anchor bolt (part of 611B64)
13	60044	Safety belt buckle
14	N620483	Safety belt buckle nut
15	W704655	LH side shield screws (2 required)
16	-	Recliner cable
17	-	Lower panel
18	-	Pin-type retainers (3 required)
19	613A97	LH side shield
20	W704655	RH side shield screws (2 required)
21	63386	RH side shield

NOTE: LH seat shown, RH similar.

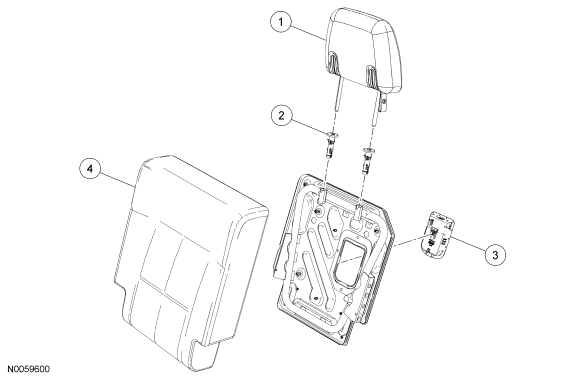

Fig 3: Exploded View Of Second Row Seat Backrest - 40 Percent

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Head restraint
2	610A16	Head restraint guide (2 required)
3	62418	Kneeling release handle
4	66800/66801	Backrest trim cover/foam pad

NOTE: LH seat shown, RH seat similar.

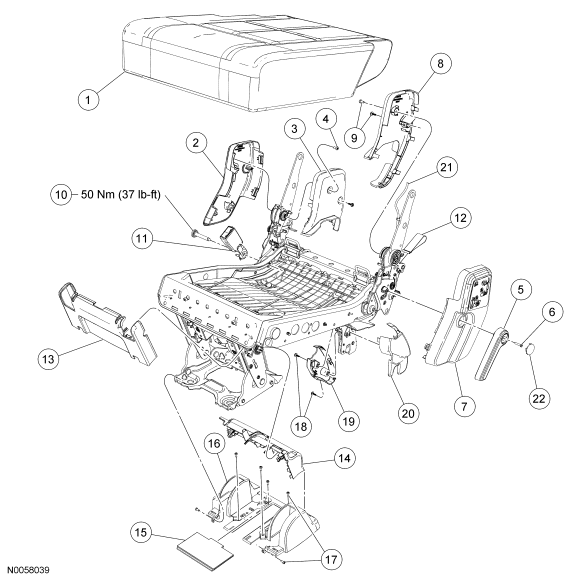

Fig 4: Exploded View Of Second Row Seat Cushion - 40 Percent

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	63805/63841	Cushion trim cover/foam pad
2	666L76	Outer recliner shield, inboard
3	61349	Inner recliner shield, inboard
4	-	Screw, inboard recliner shield (2 required)
5	617D35	Recliner handle
6	-	Screw, recliner handle
7	67460	Outer recliner shield, outboard
8	67460	Inner recliner shield, outboard
9	-	Screws, outboard recliner shield (2 required)
10	-	Bolt, safety belt buckle (part of 613D99)
11	613D99	Safety belt buckle
12	605W00	Release strap
13	600A47	Front upper pedestal cover
14	600A47	Rear upper pedestal cover
15	63388	Lower pedestal screw cover
16	63388	Lower pedestal cover
17	-	Screws, lower pedestal cover (6 required)
18	-	Screws, latch foot cover (5 required)
19	63388	Latch foot inner cover (2 required) (outboard side shown)
20	63388	Latch foot outer cover (2 required) (outboard side shown)
21	601L60	Load floor release cable
22	617D68	Recliner handle screw cover
