Fire Suppression System Module Connectors

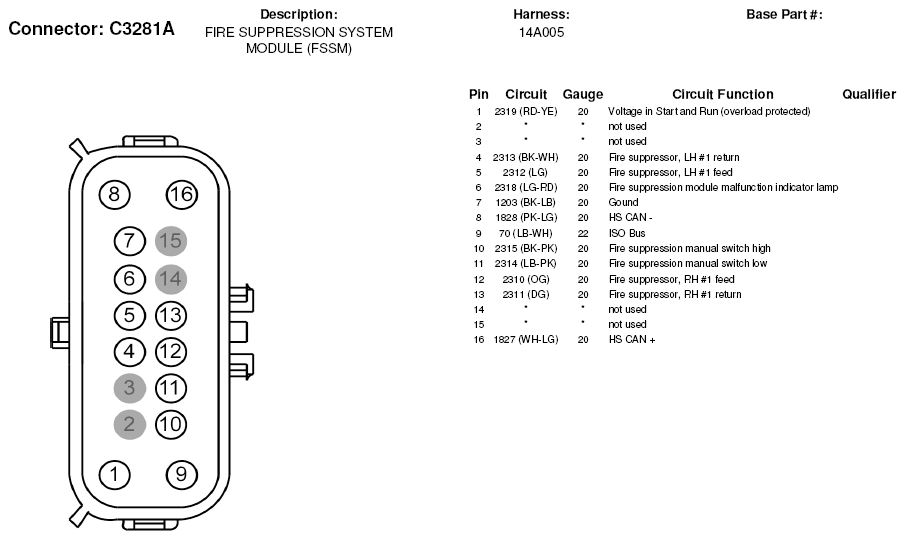

Fig 1: Fire Suppression System Module Connector End View (C3281A)
G05179337Courtesy of FORD MOTOR CO.

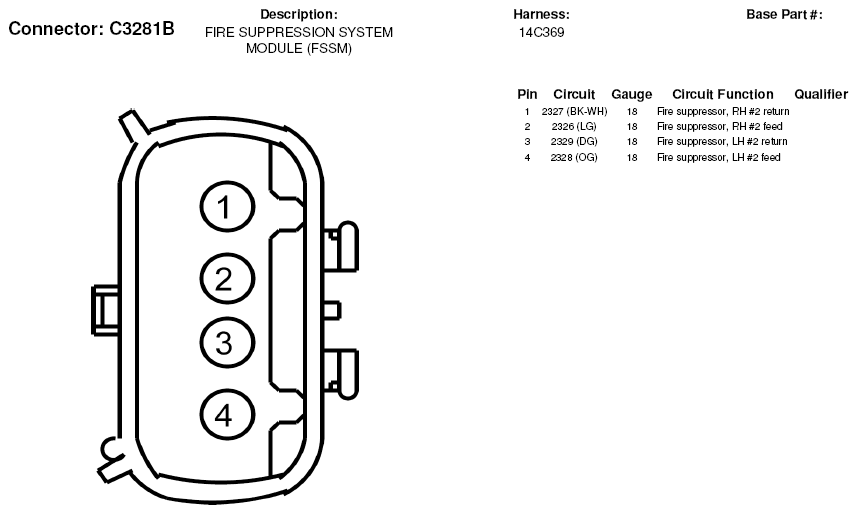

Fig 2: Fire Suppression System Module Connector End View (C3281B)
G05179338Courtesy of FORD MOTOR CO.
